Brake Master Cylinder for 2000-2001 Toyota Camry & More - Dorman M630860

$163.99

Vehicles this part fits

    Part number: M630860
    UPC: 885484270671
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $163.99
    Adding to cart… The item has been added

    Have questions?

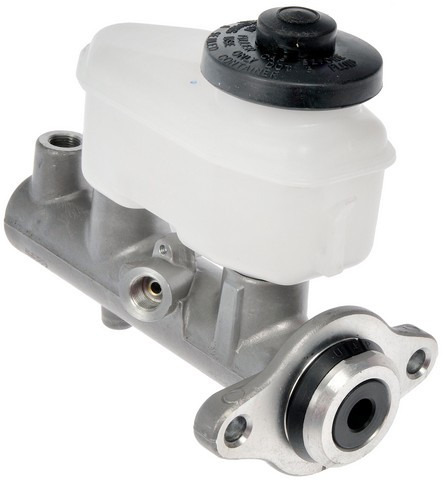

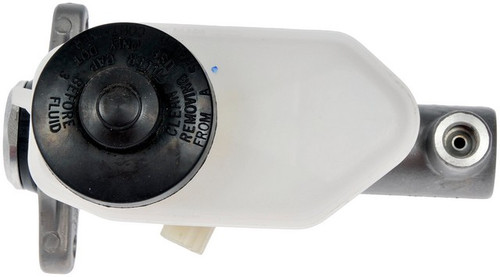

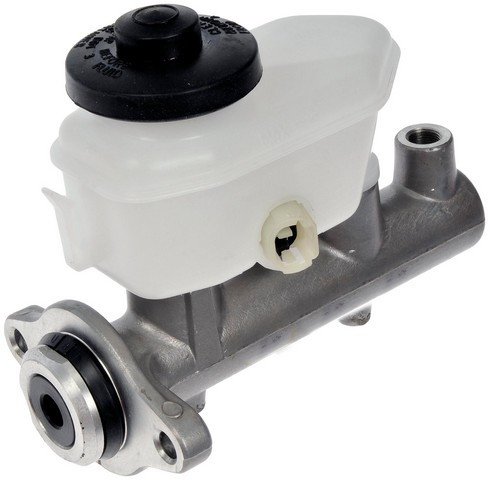

    Dorman - First Stop Brake Master Cylinder P/N:M630860
    Dorman - First Stop Brake Master Cylinder P/N:M630860
    $163.99
    $163.99

    Dorman M630860 brake master cylinder for the 2000-2001 Toyota Camry and other vehicles turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is made entirely of new materials.

    • Part of the Dorman First Stop line
    • Aluminum housing with a 0.9375 in bore diameter
    • EPDM rubber components that resist glycol-based brake fluid
    • Made to meet SAE International standards
    • Two outlets, with M12 x 1.0 threads on the rearward and secondary outlets

    Quick facts

    • Part: Dorman M630860 brake master cylinder
    • Fits: 2000-2001 Toyota Camry and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, brake fluid around the cylinder body or a brake warning light can mean the master cylinder is wearing out, though other brake parts cause the same signs. With the engine off, look for wet fluid at the cylinder and its brake line fittings, and trace where the fluid went before you replace anything.

    Fits

    It is listed for a wide range of Toyota, Nissan and Lexus models, including the 2000-2001 Toyota Camry, the 2012 Nissan NV2500 and the 2000-2003 Toyota Solara. Only one master cylinder goes on the car.

    Specifications

    Fit and size

    • Bore diameter: 0.9375 in
    • Mounting holes: 2
    • Number of outlets: 2
    • Rearward outlet size: M12 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: aluminum
    • Reservoir type: single
    • Rubber components: EPDM
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One master cylinder and one bleeder kit. The push rod, mounting hardware and mounting bracket are not included, so plan on new mounting hardware since the old pieces may not be reusable.

    Interchange: 100-1547 · 13-2946 · 11-2946 · 11-4576 · 11-4577 · 11-4579 · 130.44031 · 355-76016
    460101PA1C · 460101PA1D · 460101PA2A · 460101PA2B · 461011PA0A · MC390648 · 4720133180 · 4720133210 · F140092 · MC140092

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1547, 13-2946, 11-2946, 11-4576, 11-4577, 11-4579, 130.44031, 355-76016, 460101PA1C, 460101PA1D, 460101PA2A, 460101PA2B, 461011PA0A, MC390648, 4720133180, 4720133210, F140092, MC140092

    Frequently Asked Questions

    Is this the master cylinder for a 2000-2001 Toyota Camry?

    Yes, Dorman M630860 is listed for the 2000-2001 Toyota Camry, the 2012 Nissan NV2500 and the 2000-2003 Toyota Solara; if your car is not named here, look it up in the "Vehicles it fits" section.

    Does this master cylinder come with a bleeder kit?

    Yes, Dorman M630860 comes with the master cylinder and a bleeder kit; the push rod, mounting hardware and mounting bracket are not included.

    Is the Dorman master cylinder housing made of aluminum?

    Yes. The housing is aluminum with a 0.9375 in bore, and the rubber components are EPDM, which resists glycol-based brake fluid.

    Does a soft brake pedal mean the master cylinder is bad?

    Not always. A soft or slowly sinking pedal can mean a worn master cylinder, but brake lines and calipers can cause the same feel, so a shop can test the system.

    Is Dorman M630860 the same as 460101PA1C?

    Yes. 460101PA1C is one of the numbers this master cylinder replaces, and it is printed on the Interchange line of this page.
