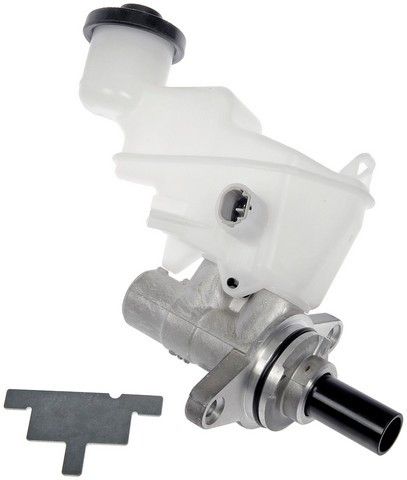

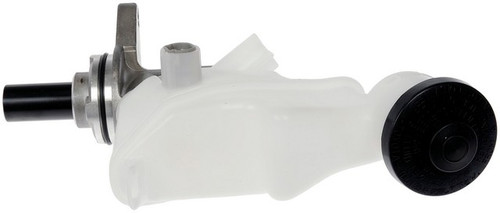

Dorman M630933 brake master cylinder for the 2012-2019 Toyota Yaris turns pedal force into hydraulic pressure for the brakes. The Dorman brake master cylinder is made entirely of new materials.
- Part of the Dorman First Stop line
- Cast iron housing constructed to match the casting material of the original part
- All rubber components are high-quality EPDM compound that resists glycol-based brake fluid
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M630933 brake master cylinder
- Fits: 2012-2019 Toyota Yaris
- Material: Cast iron
- Condition: New
A brake pedal that feels soft or sinks slowly, or fluid that keeps dropping at the reservoir, can mean the master cylinder is wearing out. Before you replace it, rule out leaks at the lines and calipers and air in the system, because those can also leave the pedal soft.
Fits
It is a direct-fit replacement for the 2012-2019 Toyota Yaris, and each car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rearward outlet size: M12 x 1.0
- Secondary outlet thread: M12 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Cast iron
- Rubber components: EPDM compound
- Reservoir: single, included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners rather than reusing old ones.
Interchange: 100-4105 · 130.44517 · 355-76099
NM55614 · MC391517 · 4720152640 · 4720152642
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this master cylinder right for the 2012-2019 Toyota Yaris?
Yes. Dorman M630933 is listed for the 2012-2019 Toyota Yaris, and each car takes one.
Does this Dorman master cylinder come with the reservoir?
Yes. The Dorman M630933 includes the reservoir and a sensor. Mounting hardware is not included.
What bore size does this master cylinder have?
The bore diameter is 0.875 inch. The cylinder has two outlets, with an M12 x 1.0 rearward outlet and an M12 x 1.0 secondary outlet thread.
Which brake fluid are the rubber parts in this master cylinder made for?
All rubber components are made of EPDM compound, which resists glycol-based brake fluid.
Does this master cylinder meet any industry standards?
Yes. Dorman M630933 is made to meet rigorous SAE International standards.
