Clutch Slave Cylinder for 2004-2018 Chevrolet Aveo & More - Dorman CS659004

$43.99

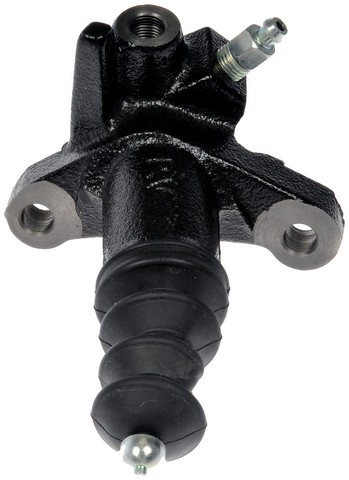

Dorman - First Stop Clutch Slave Cylinder

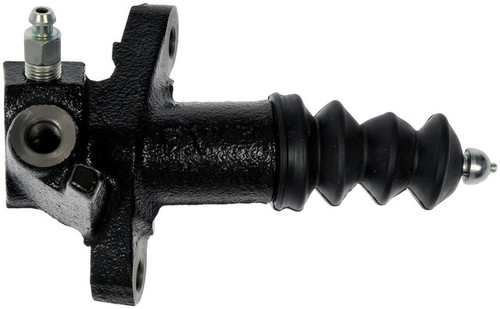

Dorman - First Stop Clutch Slave Cylinder - view 2

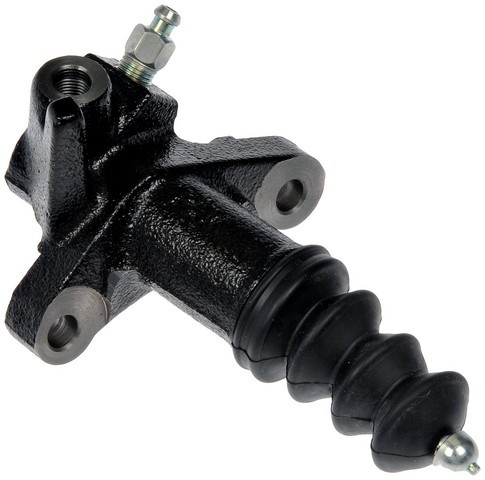

Dorman - First Stop Clutch Slave Cylinder - view 3

Dorman - First Stop Clutch Slave Cylinder - view 4

Part number: CS659004

UPC: 885484567542

Condition: New

Weight: 1.10 LBS

Item Package Quantity: 1

$43.99

Current Stock: 9

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dorman - First Stop Clutch Slave Cylinder P/N:CS659004

$43.99

Description

When a leaking or worn clutch slave cylinder leaves the pedal feeling soft or makes the clutch hard to disengage, the Dorman – First Stop Clutch Slave Cylinder CS659004 is designed to replace it. It drops in as a direct-fit replacement for the 2004-2018 Chevrolet Aveo and the 2006-2011 Chevrolet Aveo5, both with the L4-1.6L engine. The slave cylinder takes hydraulic pressure sent from the clutch master cylinder and converts it into the mechanical push that disengages the clutch, so a failed unit is a common cause of clutch-release trouble — if a leaking slave cylinder is the cause, this part addresses it.

Direct replacement: reverse-engineered from the original equipment to fit and function like the factory unit on the listed vehicles.
Build: cast iron body with a piston-type cylinder, a 13/16 in inside diameter and two mounting holes.
Durable materials: high-grade rubber components compatible with standard brake fluid.
Dimensions: 2.27 in rod length with an M10 x 1.0 rod thread; M10 x 1.0 inlet thread with a 10 mm inlet; 9 mm stud end thread diameter.

Backed by a team of engineers and quality control experts in the United States. Country of origin: Taiwan.

Interchange: S0467 · 25183025 · 96293075 · F143486 · SC143486
Manufacturer part number CS659004

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

S0467, 25183025, 96293075, F143486, SC143486

Buyer's Q&A

Frequently Asked Questions

What does this clutch slave cylinder do?

It converts hydraulic pressure from the clutch master cylinder into the mechanical movement that disengages the clutch when you press the pedal.

Which vehicles does the CS659004 fit?

It is a direct-fit replacement for the 2004-2018 Chevrolet Aveo and the 2006-2011 Chevrolet Aveo5, both with the L4-1.6L engine. See the "Vehicles it fits" section to confirm your vehicle.

What is it made of?

It has a cast iron body with a piston-type cylinder, a black finish, and high-grade rubber components compatible with standard brake fluid.

What are the key specifications?

13/16 in inside diameter, two mounting holes, 2.27 in rod length, M10 x 1.0 rod and inlet threads, a 10 mm inlet, and a 9 mm stud end thread diameter.

What are signs this slave cylinder may need replacing?

Signs it may need replacing include fluid leaking at the cylinder, a soft or sinking clutch pedal, and difficulty disengaging the clutch. Diagnose the cause before replacing.
