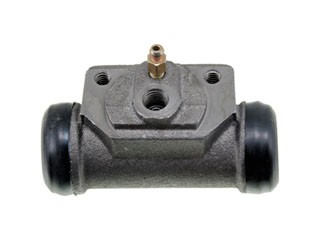

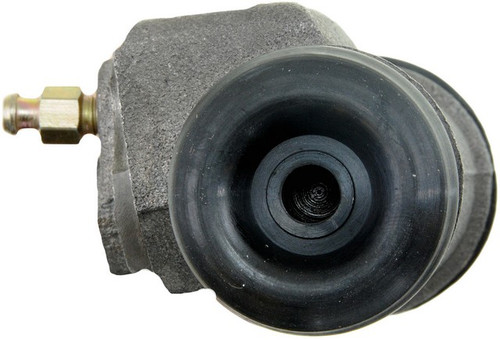

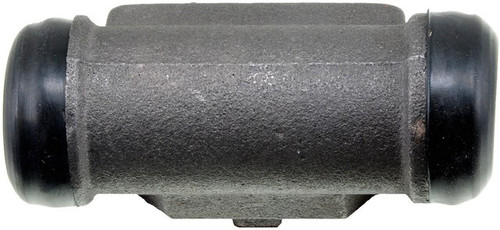

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W37696

Keep hydraulic pressure working at the rear shoes with this Dorman drum brake wheel cylinder, part number W37696 from the First Stop line. It is a direct-fit rear wheel cylinder for the 1987-1999 Dodge Dakota, engineered to be a direct match for the original drum brake wheel cylinder on that truck.

A wheel cylinder sits inside the drum brake assembly. When you press the brake pedal, hydraulic pressure from the master cylinder pushes its pistons outward and presses the brake shoes against the drum. Worn cups or a pitted bore can let fluid seep out and reduce braking force.

• Direct replacement: Built to install and perform like the original wheel cylinder on the listed Dakota applications. It is manufactured and tested for quality assurance.
• Cost-effective service: Replacing the wheel cylinder while the drum brakes are already apart is a cost-effective way to renew the hydraulic side of the brake.
• EPDM rubber cups and boots: Made with high-quality EPDM rubber cups and boots.
• Surface-tested bores: The cylinder bores are surface-tested to provide an optimum sealing surface for the pressure cups.

Signs a wheel cylinder may need replacing include brake fluid leaking inside the drum or at the backing plate, fluid-soaked brake shoes, a soft or low brake pedal, or the vehicle pulling to one side when braking. These symptoms can have other sources, so diagnose the cause before replacing parts. After installation, bleed the brake hydraulic system following the vehicle service information. This wheel cylinder is sold individually. Replacing the wheel cylinders on both sides together is recommended for balanced braking.

Interchange: 784-40013 · 84-40013 · 101-1676 · W-87013 · 134.67013 · 135.67013 · 375-40022
78440013 · 8440013 · 1011676 · W87013 · 13467013 · 13567013 · 37540022 · 18E268 · W906587 · 34064 · 4313493 · WC14064 · WC37696 · F113704 · WC113704
