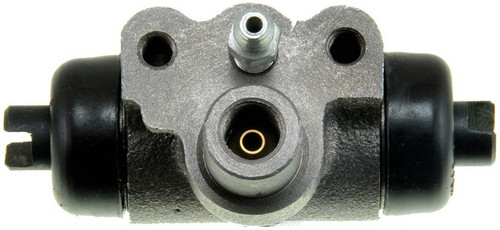

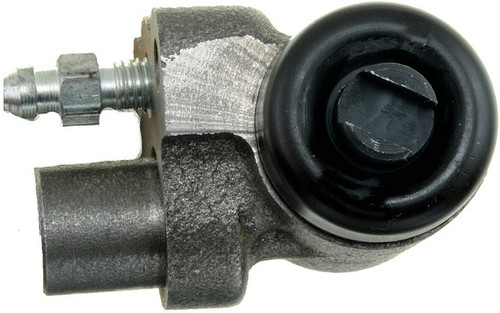

When you press the brake pedal, the Dorman - First Stop Drum Brake Wheel Cylinder W610136 uses hydraulic pressure to push its internal pistons and cups outward, forcing the rear brake shoes against the drum. It installs as a direct-fit rear replacement for select 2007-2014 Nissan models, including the 2007-2012 Sentra, 2007-2013 Tiida, 2007-2012 Versa, and 2009-2014 Cube [engine: All].
Engineered to drop in like the original cylinder on the listed applications, it is manufactured and quality-tested so worn hydraulics can be renewed while the drum brakes are serviced.
- Quality sealing: made with high-quality EPDM rubber cups and boots.
- Surface-tested bores: the wheel-cylinder bores are surface-tested to provide an optimum sealing surface for the pressure cups.
- Cast iron body: a cast iron housing with a 0.75 in inside-diameter bore.
- Bleeder screw included: a bleeder screw is included (bleeder screw cap not included); the inlet uses an M10 x 1.0 thread (10 mm diameter, 1.0 pitch).
Signs a wheel cylinder may need replacing include brake fluid seeping at the backing plate, a soft or sinking pedal, or uneven rear braking; diagnose the cause before replacing. Sold individually as one cylinder — quantity varies by application, so replacing both rear sides together is recommended for even, balanced braking. Made in China.
Interchange: 101-1134 · 1011134 · 072-9786 · 0729786 · 34282 · 34289 · 134.42004 · 13442004 · 375-67004 · 37567004 · 44100ET000 · WC370212 · F142533 · WC142533. Manufacturer part number W610136.
This part cross-references / interchanges with the following part numbers:
101-1134, 072-9786, 34282, 34289, 134.42004, 375-67004, 44100ET000, WC370212, F142533, WC142533
