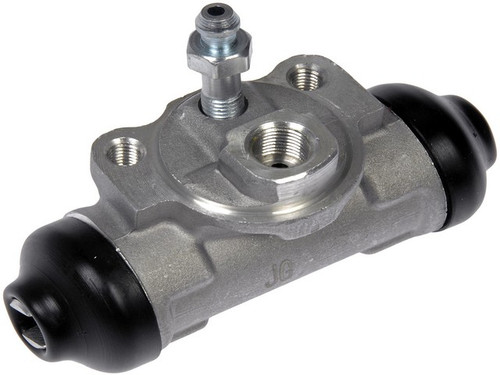

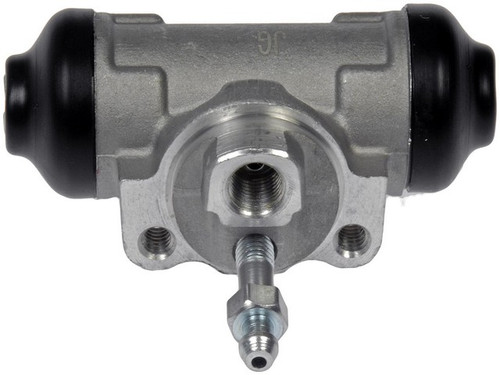

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W610189
$24.99
(You save)
Convert hydraulic brake-fluid pressure into the mechanical force that pushes the brake shoes outward against the drum with the Dorman First Stop Drum Brake Wheel Cylinder, MPN W610189. It installs as a direct-fit rear replacement for the 2003-2008 Toyota Matrix [All] and 2001-2005 Toyota RAV4 [All], and is engineered to match the original wheel cylinder's fit, function and performance on those applications.
Aluminum body with a 0.75 in inside-diameter bore.
EPDM rubber cups and boots for long-lasting sealing.
M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
Bleeder screw included; the bleeder screw cap is not included.
Surface-tested bore checked to provide an optimum sealing surface for the pressure cups.
If a leaking or seized wheel cylinder is behind fluid seepage at the drum, a soft pedal, or uneven rear braking, this unit replaces it. Replacing the cylinder while servicing the drum brakes is an efficient way to help keep the rear brakes working properly. Sold individually; both listed applications use two (one per rear wheel), so order accordingly and replace both sides together as a matched pair. Country of origin: China.
It is a direct-fit rear replacement for the 2003-2008 Toyota Matrix [All] and 2001-2005 Toyota RAV4 [All]. See the Buyer's Guide tab to confirm your vehicle.
Does it come with a bleeder screw?
Yes, the bleeder screw is included. The bleeder screw cap is not included.
How many do I need?
It is sold individually. Both listed applications use two cylinders (one per rear wheel), so order two and replace both sides together as a matched pair for balanced braking.
What are the signs a wheel cylinder may need replacing?
Signs include brake-fluid seepage at the drum, a soft or spongy pedal, and uneven rear braking. Diagnose the cause before replacing, as other components can produce these symptoms.
What are the bore and inlet thread specs?
It has a 0.75 in inside-diameter bore and an M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
