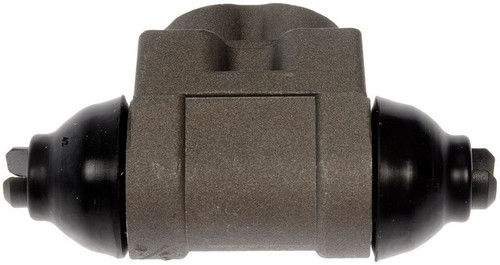

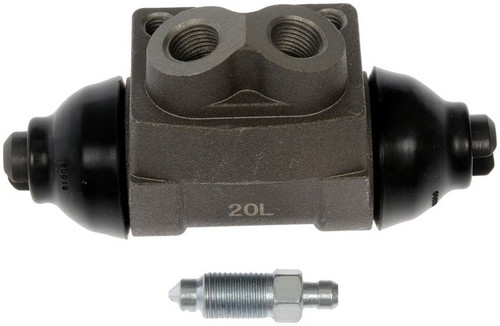

Push the rear brake shoes outward against the drum with hydraulic pressure using the Dorman - First Stop Drum Brake Wheel Cylinder W610243, a direct-fit rear replacement engineered to match the fit, function and performance of the original wheel cylinder on the 2017-2020 Hyundai Elantra and 2020-2023 Hyundai Venue. Replacing the cylinder while you service the rear drum brakes is a cost-effective way to keep the hydraulic circuit sealed.
- Cast iron body: built with a 3/4 in inside diameter bore that is surface-tested to provide an optimum sealing surface for the pressure cups.
- EPDM rubber cups and boots: high-quality seals for long-lasting performance.
- Bolted mount: two mounting holes and an M10 x 1.0 inlet thread; outside diameter 32 mm, length 57 mm.
- Includes a bleeder screw (one wheel cylinder plus one bleeder screw per package). A bleeder screw cap and mounting hardware are not included.
Consult the vehicle service information for the correct fasteners and whether they may be reused. Made in China.
Interchange: 134.51022 · 375-03012 · 37503012 · 583303X000 · WC370276. Manufacturer part number W610243.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Will this fit my vehicle?
It is a direct-fit rear drum brake wheel cylinder for the 2017-2020 Hyundai Elantra and 2020-2023 Hyundai Venue. See the Buyer's Guide tab to confirm your application.
What is included in the package?
One rear wheel cylinder and one bleeder screw. A bleeder screw cap and mounting hardware are not included; consult the vehicle service information for the correct fasteners and whether they may be reused.
What are the cylinder's dimensions?
It has a 3/4 in inside diameter bore, a 32 mm outside diameter, a 57 mm length, an M10 x 1.0 inlet thread, and two mounting holes.
What is it made of?
The body is cast iron and it uses high-quality EPDM rubber cups and boots. The bore is surface-tested to ensure an optimum sealing surface for the pressure cups.
How many should I order?
Quantity varies by application: the listed Hyundai Elantra uses two and the Hyundai Venue uses one. Each package contains a single wheel cylinder, so order the amount your vehicle requires.
