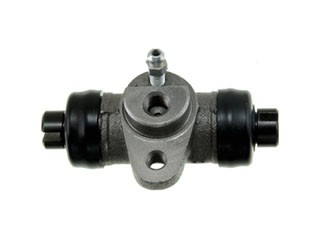

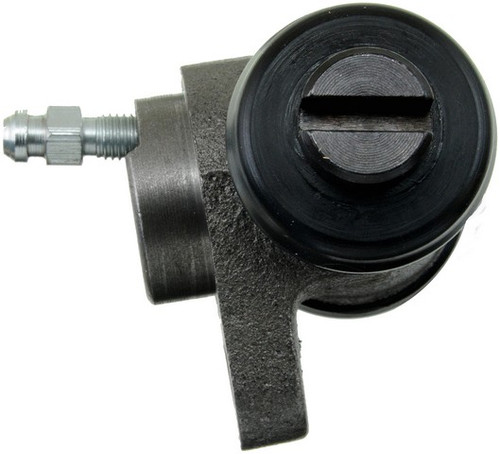

Front Drum Brake Wheel Cylinder for 1970-1994 Volkswagen Sedan & More - Dorman W90549

$12.99

Vehicles this part fits

    Part number: W90549
    UPC: 082702414361
    Condition: New
    Weight: 0.90 LBS
    Item Package Quantity: 1
    $12.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - First Stop Drum Brake Wheel Cylinder P/N:W90549
    Dorman - First Stop Drum Brake Wheel Cylinder P/N:W90549
    $12.99
    $12.99

    Keep your drum brakes clamping evenly with the Dorman First Stop Drum Brake Wheel Cylinder W90549. This front-position wheel cylinder is a direct-fit replacement for the drum brakes on the 1965-1979 Volkswagen Beetle, 1965-1966 Volkswagen Karmann Ghia, 1971-1977 Volkswagen Safari and 1970-1994 Volkswagen Sedan, engineered to match the original cylinder's fit, function and performance on these applications. Mounted at the drum, it converts hydraulic brake-fluid pressure into mechanical force that pushes the brake shoes outward against the drum; replacing a leaking or seized cylinder while you service the drum brakes is a fast, cost-effective way to keep the hydraulic side working as intended.

    • Cast-iron body: the bore is surface-tested to provide an optimum sealing surface for the pressure cups.
    • Quality sealing materials: built with high-quality EPDM rubber cups and boots for long-lasting performance.
    • 0.875 in. bore: M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).
    • Hardware: bleeder screw included; bleeder screw cap not included.

    Sold individually. The listed applications use two per vehicle, so order 2 and replace both sides together for balanced braking. Made in China.

    Interchange: 784-94111 · 78494111 · 84-94111 · 8494111 · W906251 · W-20111 · W20111 · 072-8050 · 0728050 · 072-8051 · 0728051 · 072-8052 · 0728052 · 33682 · 134.33111 · 13433111 · 135.33111 · 13533111 · WC13682 · 375-74003 · 37574003 · 90549 · 131611057A · 2037109 · WC37109 · 113611057 · 131611057 · F90549 · WC90549. Manufacturer part number W90549.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    784-94111, 84-94111, W906251, W-20111, 072-8050, 072-8051, 072-8052, 33682, 134.33111, 135.33111, WC13682, 375-74003, 90549, 131611057A, WC37109, 113611057, 131611057, F90549, WC90549

    Frequently Asked Questions

    What vehicles does the W90549 wheel cylinder fit?

    It's a direct-fit replacement for the front drum brakes on the 1965-1979 VW Beetle, 1965-1966 Karmann Ghia, 1971-1977 Safari and 1970-1994 Sedan. See the "Vehicles it fits" section to confirm your vehicle.

    What does a drum brake wheel cylinder do?

    It converts hydraulic brake-fluid pressure into mechanical force, pushing the brake shoes outward against the drum. A leaking or seized cylinder can reduce that action.

    What is the bore size and inlet thread?

    The cylinder has a 0.875 in. inside diameter bore and an M10 x 1.0 inlet thread (10 mm thread diameter, 1.0 pitch).

    Does it include a bleeder screw?

    Yes, the bleeder screw is included. The bleeder screw cap is not included.

    How many do I need?

    It's sold individually, and the listed applications use two per vehicle. Order 2 and replace both sides together for balanced braking.
