A/C Compressor By-Pass Pulley for 2000-2006 Jeep Wrangler & More - Dorman 34275

$80.99

Vehicles this part fits

    Part number: 34275
    UPC: 885484405868
    Condition: New
    Weight: 3.74 LBS
    Item Package Quantity: 1
    $80.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - HELP A/C Compressor Bypass Pulley P/N:34275
    Dorman - HELP A/C Compressor Bypass Pulley P/N:34275
    $80.99
    $80.99

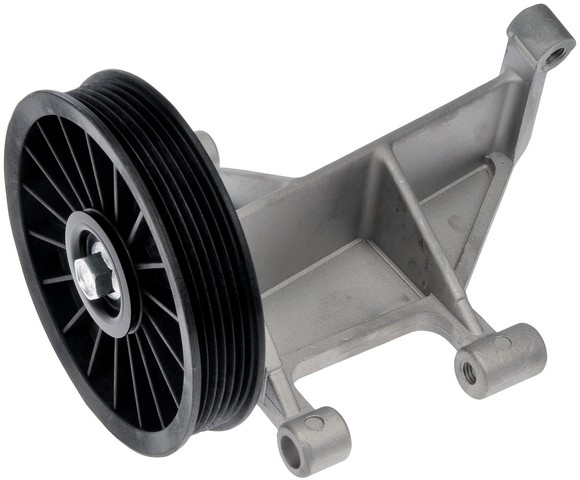

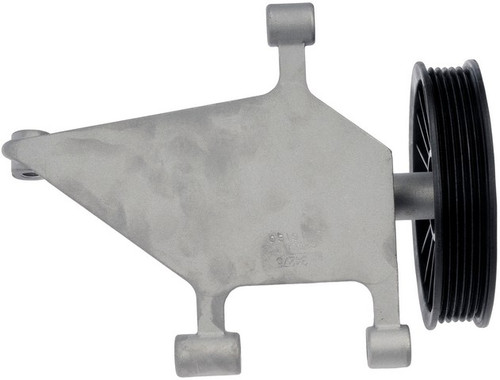

    Dorman 34275 A/C compressor by-pass pulley for the 2000-2006 Jeep Wrangler and other vehicles gives the drive belt a pulley to run on in place of the A/C compressor.

    • Allows the original drive belt to be used while bypassing an inoperable A/C compressor
    • Serpentine-groove pulley with a 5 in outside diameter
    • Plastic pulley on an aluminum bracket
    • Quality components and extensive testing for a good fit and long service life

    Quick facts

    • Part: Dorman 34275 A/C compressor by-pass pulley
    • Fits: 2000-2006 Jeep Wrangler and other vehicles
    • Material: plastic pulley, aluminum bracket
    • Condition: New

    A noisy or seized compressor or air that stays warm can mean the compressor has failed. A worn drive belt, a weak tensioner or a low refrigerant charge can be behind the same signs, so find the cause before you decide to bypass the compressor.

    Fits

    This pulley fits the 2000-2006 Jeep Wrangler and the 1999-2004 Jeep Grand Cherokee, and each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Outside diameter: 5 in
    • Pulleys included: 1
    • Compressor type: 10PA

    Build and materials

    • Pulley type: serpentine grooves
    • Pulley material: plastic
    • Bracket material: aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One A/C compressor by-pass pulley with its bracket and mounting hardware.

    Installation notes

    • Uses the same mounting points as the A/C compressor.
    • Installation instructions are included for the steps.

    Interchange: 4710400 · 4717008 · 77379 · 78379 · TSR2472 · TSR2473 · TSR2474 · 6512010 · SK34275 · CO22034C · KT3915 · KT3915A · KT3916 · KT3916A · KT3917 · KT3917A · KT3917B · KT3918 · KT3918A · KT4941 · KT4941A · KT5619 · KT5619A · KT5619B

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4710400, 4717008, 77379, 78379, TSR2472, TSR2473, TSR2474, 6512010, SK34275, CO22034C, KT3915, KT3915A, KT3916, KT3916A, KT3917, KT3917A, KT3917B, KT3918, KT3918A, KT4941, KT4941A, KT5619, KT5619A, KT5619B

    Frequently Asked Questions

    Does the Dorman 34275 fit the 2000-2006 Jeep Wrangler?

    Yes. Dorman 34275 fits the 2000-2006 Jeep Wrangler and the 1999-2004 Jeep Grand Cherokee, and each takes one.

    Does the Dorman 34275 come with a bracket and mounting hardware?

    Yes. Dorman 34275 comes with one A/C compressor by-pass pulley, its mounting bracket and mounting hardware.

    How big is the Dorman AC compressor by-pass pulley, and what is it made of?

    The pulley has a 5 in outside diameter and serpentine grooves. The pulley is plastic and the bracket is aluminum.

    What signs can point to a failed A/C compressor before I buy a bypass pulley?

    A noisy or seized compressor, warm air from the vents and visible damage to the compressor or its clutch can be signs. A shop can test the A/C system.

    Does this by-pass pulley mount where the A/C compressor was?

    Yes. This by-pass pulley uses the same mounting points as the A/C compressor, and installation instructions come in the box.
