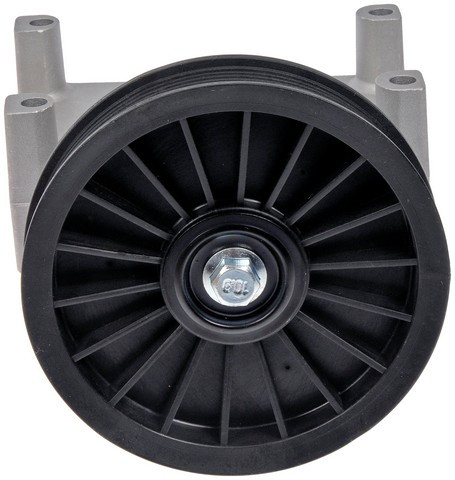

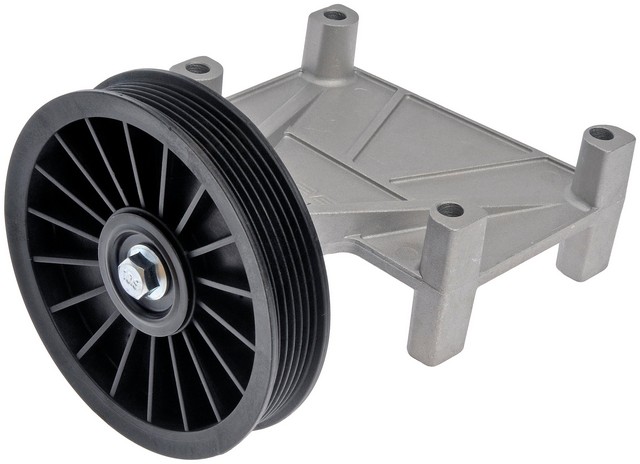

Dorman 34852 A/C compressor by-pass pulley for the 2002-2006 Toyota Camry and other vehicles lets the drive belt run without the A/C compressor. The belt turns this pulley in the compressor's place.
- Retains the use of the standard drive belt once a failed A/C compressor is removed
- Aluminum bracket and plastic pulley built from quality components for a long service life
- Uses the same mounting points as the A/C compressor
- Extensively tested for fit and service life
Quick facts
- Part: Dorman 34852 A/C compressor by-pass pulley
- Fits: the 2002-2006 Toyota Camry and other vehicles
- Material: aluminum bracket, plastic pulley
- Condition: New
Belt squeal, a noisy compressor or warm air from the vents can mean the compressor has failed, though a worn drive belt or a weak belt tensioner can lie behind these as well, so find the cause before bypassing the compressor.
Fits
It is listed for a wide range of Toyota and Lexus models, among them the 2002-2006 Toyota Camry, the 2001-2007 Toyota Highlander and the 2000-2004 Toyota Avalon. The quantity is one pulley per vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside diameter: 5.3 in
- Pulley type: serpentine
- Compressor type: 10PS
- Pulleys included: 1
Build and materials
- Material: aluminum bracket, plastic pulley
- Mounting bracket: included
- Condition: New
- Country of origin: China
In the box
One bracket and one pulley. Mounting hardware and installation instructions are not included; the old fasteners may not be reusable, so plan on new ones.
Interchange: 4711416 · 77390 · TSR2495 · TSR2496 · TSR2497 · TSR2498 · TSR2499 · TSR2500 · TSR2501 · TSR2502 · TSR4847 · 6511685 · CO28004C · KT1176 · KT1176A · KT1177 · KT1177A · KT1177B · KT1177D · KT4015 · KT4016 · KT4016A · KT4016B · KT4016D · KT4016E · KT4018 · KT4019
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4711416, 77390, TSR2495, TSR2496, TSR2497, TSR2498, TSR2499, TSR2500, TSR2501, TSR2502, TSR4847, 6511685, CO28004C, KT1176, KT1176A, KT1177, KT1177A, KT1177B, KT1177D, KT4015, KT4016, KT4016A, KT4016B, KT4016D, KT4016E, KT4018, KT4019
Frequently Asked Questions
Will the Dorman 34852 by-pass pulley fit a 2002-2006 Toyota Camry?
Yes, Dorman 34852 is listed for the 2002-2006 Toyota Camry, and the car takes one pulley. If your car is a different model, look it up in the "Vehicles it fits" section.
Does the Dorman 34852 come with bolts, instructions or a bracket?
It includes a bracket but no bolts or instructions. Dorman 34852 comes as one bracket and one pulley, and the old fasteners may not be reusable, so plan on new ones.
What size is this A/C by-pass pulley, and what is it made of?
This by-pass pulley has a 5.3 in outside diameter and a serpentine pulley type. The bracket is aluminum and the pulley is plastic.
Can I keep my existing drive belt with this by-pass pulley?
Yes. With a failed A/C compressor removed, the standard drive belt stays in use over this by-pass pulley, which mounts at the compressor's mounting points. No belt comes with it.
Does Dorman 34852 replace TSR2495?
Yes, TSR2495 is on the interchange list for Dorman 34852, together with 4711416, 77390 and others.
