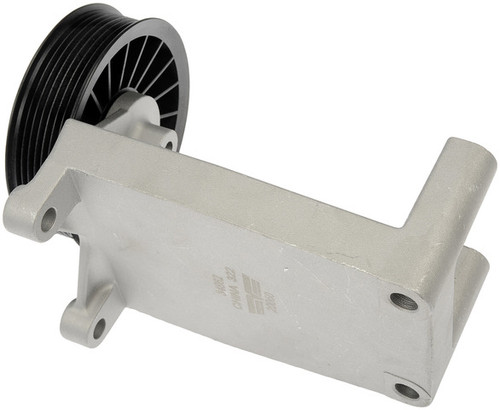

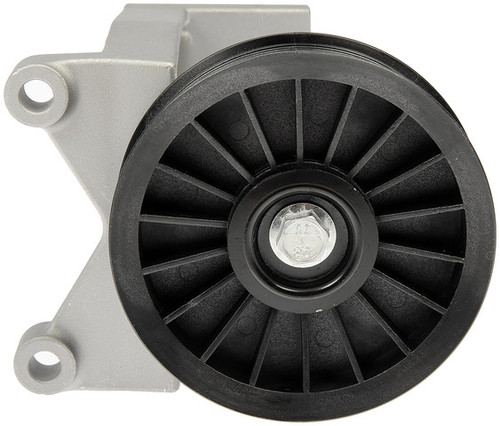

Dorman - HELP A/C Compressor Bypass Pulley P/N:34186
Dorman 34862 A/C compressor bypass pulley for the 2007-2013 Nissan Altima keeps the original drive belt in use after a failed compressor comes off. The Dorman AC bypass pulley takes the compressor's place in the belt path.
Warm air from the vents, a noisy compressor or a squealing belt can mean the A/C compressor is worn out, though a blown fuse or a faulty clutch relay can be behind a compressor that will not run, so find the cause first. If the compressor is the cause, this pulley lets the belt keep turning without it.
This bypass pulley fits the 2007-2013 Nissan Altima, which takes one.
Fit and size
Build and materials
One A/C compressor bypass pulley and one mounting bracket. Mounting hardware and installation instructions are not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: 4715004 · 5730NK · 67667 · 68667 · TSN2255 · TSN5072 · TSR2255 · TSR5072 · 6512479 · CO10868C · KT4827 · KT4827A · KT4828 · KT4828A · KT5549 · KT5549A · KT5550 · KT5550A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Will the Dorman 34862 bypass pulley fit a 2007-2013 Nissan Altima?
Yes. Dorman 34862 fits the 2007-2013 Nissan Altima, and the car takes one.
Does the Dorman AC compressor bypass pulley include a mounting bracket?
Yes. Dorman 34862 comes with one pulley and a mounting bracket. Mounting hardware and installation instructions are not included.
What size is this bypass pulley, and what is it made of?
It is 4.75 in outside diameter, 1.5 in inside diameter and 1.3 in wide, and it is made of aluminum and plastic.
Does this bypass pulley mount where the A/C compressor does?
Yes. This pulley uses the same mounting points as the A/C compressor and has four mounting holes. No installation instructions come with it.
Does Dorman 34862 interchange with 5730NK?
Yes. 5730NK is one of the other numbers this pulley replaces, along with 4715004 and 67667. The full list is on the Interchange line.
