A/C Compressor Bypass Pulley for 2006-2007 Jeep Grand Cherokee & More - Dorman 34863

$95.99

Vehicles this part fits

    Part number: 34863
    UPC: 885484503854
    Condition: New
    Weight: 3.65 LBS
    Item Package Quantity: 1
    $95.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - HELP A/C Compressor Bypass Pulley P/N:34863
    Dorman - HELP A/C Compressor Bypass Pulley P/N:34863
    $95.99
    $95.99

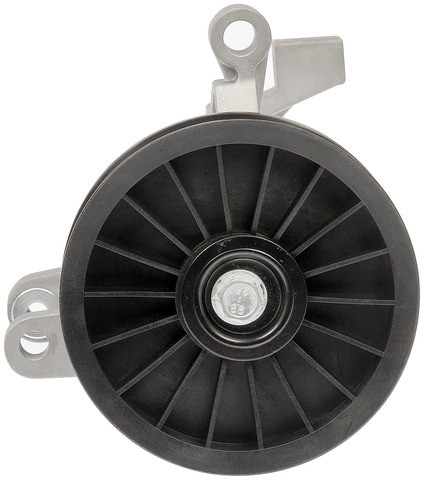

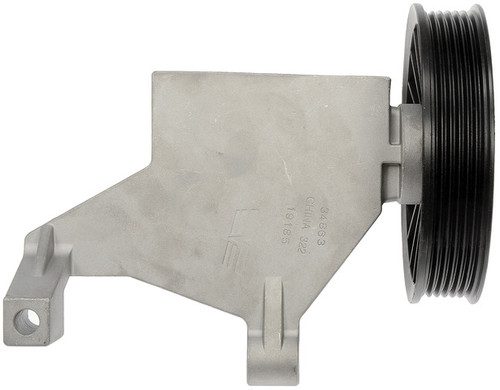

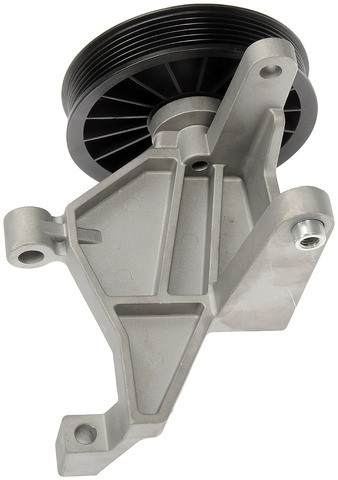

    Dorman 34863 A/C compressor bypass pulley for the 2006-2007 Jeep Grand Cherokee and other vehicles lets the original drive belt stay in use once a failed A/C compressor is removed.

    • Bypasses an inoperable A/C compressor so the standard drive belt keeps running
    • Plastic pulley on an aluminum bracket, made for a 6-groove serpentine belt
    • Components chosen for a long service life
    • Tested extensively for fit and service life

    Quick facts

    • Part: Dorman 34863 A/C compressor bypass pulley
    • Fits: 2006-2007 Jeep Grand Cherokee and other vehicles
    • Material: Plastic pulley, aluminum bracket
    • Condition: New

    A worn belt, a weak tensioner or a rough idler pulley can be behind a squeal or rattle from the belt drive too, so find which one is at fault before you buy a bypass pulley. This one is meant for a vehicle with an inoperable A/C compressor.

    Fits

    It fits the 2006-2007 Jeep Grand Cherokee and the 2006-2007 Jeep Commander.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Outside diameter: 5.3 in
    • Width: 1.15 in
    • Mounting holes: 4, with diameters of 8.6 mm, 10.5 mm, 11 mm and 13 mm
    • Pulley type: 6-groove serpentine belt
    • Compressor type: 10S17E

    Build and materials

    • Pulley material: plastic
    • Bracket material: aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One bracket with its pulley, mounting hardware and installation instructions. This listing is one bracket and pulley, and each vehicle it fits takes one.

    Installation notes

    • Uses the same mounting points as the A/C compressor, which makes it easy to install.
    • Installation instructions come with the part for the steps.

    Interchange: 77361 · 4710870 · 4117NK · 78361 · TSN2418 · TSN2419 · TSR2418 · TSR2419 · 6512150 · CO10801C · KT1009 · KT1009A · KT1984 · KT1984A · KT1985 · KT1985A · KT1986 · KT1986A · KT1987 · KT1987A · KT5755 · KT5755A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    77361, 4710870, 4117NK, 78361, TSN2418, TSN2419, TSR2418, TSR2419, 6512150, CO10801C, KT1009, KT1009A, KT1984, KT1984A, KT1985, KT1985A, KT1986, KT1986A, KT1987, KT1987A, KT5755, KT5755A

    Frequently Asked Questions

    Does the Dorman AC bypass pulley 34863 fit the 2006-2007 Jeep Grand Cherokee?

    Yes. Dorman 34863 is listed for the 2006-2007 Jeep Grand Cherokee and is a pulley for a 6-groove serpentine belt.

    What comes with the Dorman AC compressor bypass pulley?

    Dorman 34863 comes as a bracket with its pulley, mounting hardware and installation instructions. Each vehicle it fits takes one.

    How big is this bypass pulley?

    The outside diameter is 5.3 inches and the width is 1.15 inches. It has a plastic pulley on an aluminum bracket.

    How can I tell if belt noise is coming from the bypass pulley?

    With the engine off and cool, look for cracks or chips in the plastic pulley and check that the belt sits straight in the grooves. A shop can test belt noise with the engine running.

    Does Dorman 34863 mount where the A/C compressor was?

    Yes. Dorman 34863 uses the same mounting points as the A/C compressor, and mounting hardware and instructions come with it.
