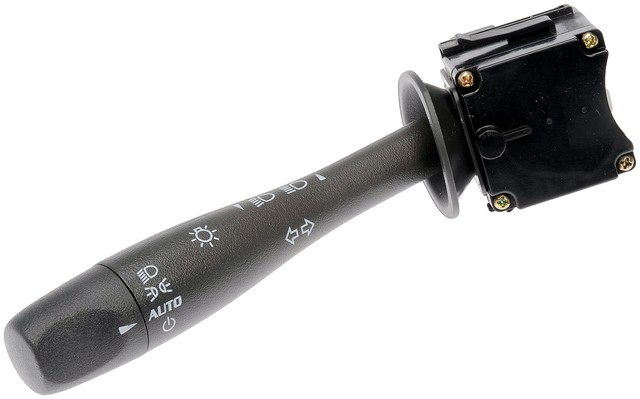

Dorman - HELP Multi-Function Switch P/N:2330813
Dorman 2330901 multi-function switch for the 2007-2009 Chevrolet Equinox and other vehicles controls the lights and high beams from one lever. It replaces an original switch that has failed from fatigue, and it is designed to match that switch's appearance and function on specified applications.
Lights or high beams that respond only some of the time, a high-beam flash that stops working, or a lever that feels loose can mean this switch is worn, though a burned-out bulb or a blown fuse can be behind the same trouble.
This is a direct-fit replacement for the 2007-2009 Chevrolet Equinox, which takes one, and for the 2006-2011 Chevrolet HHR and the 2005-2010 Chevrolet Cobalt. Driving something else? Look up your year, make and model in the "Vehicles it fits" section.
Fit and size
Build and materials
One multi-function switch with its lever.
Interchange: 1S8425 · S14396 · 10362761 · 15258881 · 15841544 · 15915857 · 20940099 · CBS1202 · SW5908
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Dorman 2330901 multi-function switch fit a 2007-2009 Chevrolet Equinox?
Yes. Dorman 2330901 fits the 2007-2009 Chevrolet Equinox, and each one takes one switch. For another vehicle, look in the "Vehicles it fits" section.
Is this Dorman multi function switch right for a 2006-2011 Chevrolet HHR?
Yes. The 2006-2011 Chevrolet HHR is among the vehicles Dorman 2330901 fits, and it takes one switch.
Which lighting functions does this multi-function switch control?
This switch controls the main lights, running lights, latching high beams and the momentary high-beam flasher. It has no wiper, washer, cruise control, fog light or hazard controls.
Does the 2330901 switch come with the lever?
Yes. The package is one multi-function switch with the lever included. The lever measures 178.5 mm.
How many pins and connectors does the Dorman 2330901 switch have?
Dorman 2330901 has 16 male pin terminals and two black female connectors.
