Dorman 926-155 A/C compressor clutch for the 2007-2011 Honda CR-V connects the compressor to its drive pulley when the A/C is turned on. If a worn clutch is why the compressor is not engaging, this replacement addresses it.
- Plug-and-play installation with a factory-style electrical connector
- Metal construction for the clutch assembly
- Try-on tested to confirm a quality fit
- Two bullet terminals on 14-gauge wire
Quick facts
- Part: Dorman 926-155 A/C compressor clutch
- Fits: 2007-2011 Honda CR-V
- Material: Metal
- Condition: New
A compressor that does not engage, warm air from the vents or a noisy clutch can all be signs of wear. These signs alone do not prove the clutch is at fault, since low refrigerant is another common cause.
Fits
This direct-fit replacement matches the original equipment part and suits the 2007-2011 Honda CR-V, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Clutch maximum diameter: 106 mm
- Distance from clutch to mounting flange: 23 mm
- Mounting flange thickness: 11 mm
Build and materials
- Material: Metal
- Mounting type: Spline shaft
- Rotation: Clockwise
- Thermal type: Non thermal
- Condition: New
- Country of origin: China
In the box

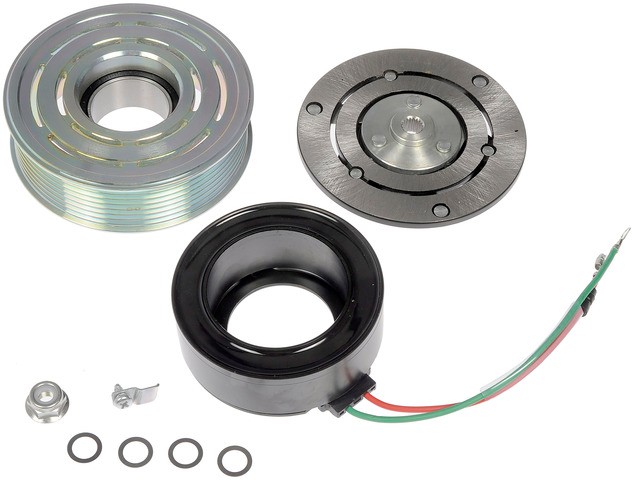

One pulley, one coil, one A/C clutch plate, three shims, one pulley nut and one wiring harness retaining screw.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Dorman 926-155 A/C compressor clutch fit the 2007-2011 Honda CR-V?
Yes. Dorman 926-155 is a direct-fit clutch for the 2007-2011 Honda CR-V, which takes one.
Does this A/C compressor clutch come with the pulley and coil?
Yes. The package has one pulley, one coil, one A/C clutch plate, three shims, one pulley nut and one wiring harness retaining screw.
What shaft type and rotation does the Dorman 926-155 clutch use?
Dorman 926-155 mounts on a spline shaft and turns clockwise. It is a non-thermal clutch with a maximum diameter of 106 mm.
How can I tell if my A/C compressor clutch is worn?
A compressor that does not engage, warm air from the vents or noise from the clutch can be signs. A shop can test the clutch circuit and the refrigerant pressure.
What kind of electrical connector does this A/C compressor clutch have?
It has a factory-style electrical connector with two bullet terminals on 14-gauge wire, and the installation is plug-and-play.
