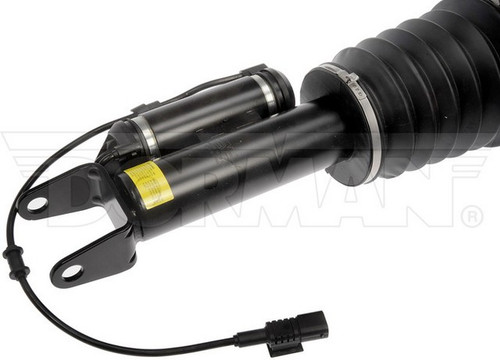

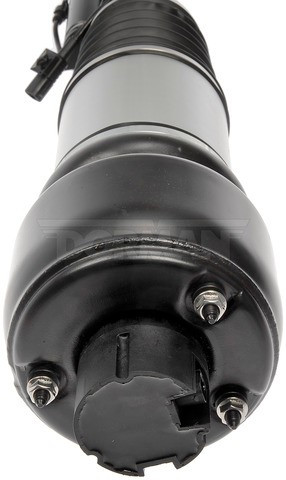

Dorman 949-863 front left suspension air strut for the 2007-2011 Mercedes-Benz CLS550 and other vehicles replaces the original equipment strut to restore ride quality. It is also intended to help protect the other air suspension components from damage.
- Rubber and metal components in the strut construction
- Vehicle try-on and durability testing for conformance to product standards and quality
- Maximum air chamber pressure of 0.8 MPa
- Compressed length of 20.2 in and extended length of 25 in
Quick facts
- Part: Dorman 949-863 suspension air strut
- Fits: 2007-2011 Mercedes-Benz CLS550 and other vehicles
- Position: Front left
- Condition: New
A corner that sags, a rough ride or a car that sits low after parking can mean this strut is worn, though a failing air compressor or a faulty ride height sensor can be behind the same signs. If the strut is the cause, this one replaces the front left.
Fits
The 2007-2011 Mercedes-Benz CLS550, the 2003-2009 Mercedes-Benz E320 and the 2006-2009 Mercedes-Benz E350 all take this strut, along with other vehicles. The 2007-2011 Mercedes-Benz CLS550 takes one on the front left; the front right is ordered separately, and the two fronts are normally replaced as a pair.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Compressed length: 20.2 in
- Extended length: 25 in
- Shaft diameter: 5.7 in
- Outside cylinder diameter: 1.9 in
- Maximum air chamber pressure: 0.8 MPa
Build and materials
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One suspension air strut.
Interchange: AS-2245 · AS-2786 · 4J-2025S · 127M-27-FL
2113205513 · 211320551380 · 2113206113 · 211320611380 · 2113209313 · 2193201113 · 219320111380
This part cross-references / interchanges with the following part numbers:
AS-2245, AS-2786, 4J-2025S, 2113205513, 211320551380, 2113206113, 211320611380, 2113209313, 2193201113, 219320111380, 127M-27-FL
Frequently Asked Questions
Is the Dorman 949-863 front left air strut right for the 2003-2009 Mercedes-Benz E320?
Yes. Dorman 949-863 is a front left suspension air strut for the 2003-2009 Mercedes-Benz E320, and it also fits the 2007-2011 Mercedes-Benz CLS550. For other cars, look in the "Vehicles it fits" section.
Is the Dorman 949-863 sold as a single air strut?
Yes. The package holds one suspension air strut for the front left, and nothing else is listed in it. The front right is a separate part.
What is the maximum air chamber pressure of this front left air strut?
Dorman 949-863 has a maximum air chamber pressure of 0.8 MPa. Its compressed length is 20.2 in and its extended length is 25 in.
How can I tell if a front air strut is leaking or worn?
A sagging corner, a rough ride or cracks and tears in the rubber can mean the suspension air strut is worn. With the engine off, look over the rubber; a shop can test the air system for leaks.
Does Dorman 949-863 replace 2113205513?
Yes. 2113205513 is one of the numbers Dorman 949-863 replaces, along with AS-2245 and 2113206113. All of them are on the Interchange line.
