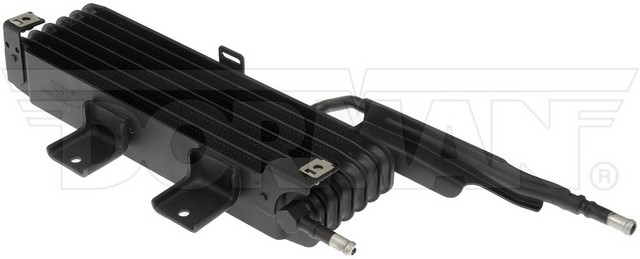

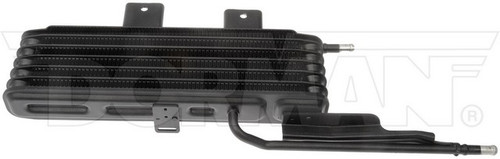

Dorman 904-955 transmission oil cooler for the 2014-2016 Toyota Highlander V6 3.5L helps keep transmission fluid at a proper temperature. It is intended for use when a factory cooler has failed from contamination, heat or impact.
- Aluminum construction with a five-row cooling core
- Hose barb inlet and outlet, each 0.395 inch in diameter
- Engineered to help maintain transmission fluid temperature and protect the transmission from damage
- Designed and manufactured to strict specifications for reliable performance
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 904-955 transmission oil cooler
- Also called: automatic transmission oil cooler
- Fits: 2014-2016 Toyota Highlander V6 3.5L
- Position: Auxiliary
- Material: Aluminum
- Condition: New
Fluid leaking at the cooler, a dented or cracked cooler body, or a transmission that runs hot can all mean a failing automatic transmission oil cooler. Damaged hoses, a clogged fluid filter or a low fluid level can be behind those signs too, so find the cause before buying a new cooler.
Fits
This is a direct replacement designed to match the performance of an original equipment cooler on the 2014-2016 Toyota Highlander V6 3.5L, which takes one.
Specifications
Fit and size
- Position: Auxiliary
- Quantity per vehicle: 1
- Length: 19.5 in
- Height: 2.5 in
- Thickness: 2 in
- Depth: 2.27 in
- Strap width: 3.5 in
- Inlet and outlet diameter: 0.395 in
- Line inside diameter: 0.2 in
Build and materials
- Grade: Standard replacement
- Material: Aluminum
- Core material: Aluminum
- Cooling rows: 5
- Inlet and outlet attachment: Hose barb
- Condition: New
- Country of origin: China
In the box
One transmission oil cooler. Mounting hardware is not included, so plan on new hardware rather than reusing the old.
Interchange: FC2010T · 3291048190
Frequently Asked Questions
Is the Dorman 904-955 the right transmission oil cooler for a 2014-2016 Toyota Highlander V6 3.5L?
Yes. Dorman 904-955 fits the 2014-2016 Toyota Highlander V6 3.5L, and that vehicle takes one cooler.
Does the Dorman transmission cooler come with mounting hardware?
No. Dorman 904-955 comes as one transmission oil cooler with no mounting hardware, so plan on new hardware.
What size are the hose barb fittings on this transmission oil cooler?
The inlet and outlet are both hose barbs, each 0.395 inch in diameter. The line inside diameter is 0.2 inch.
How big is this transmission oil cooler?
This cooler is 19.5 inches long, 2.5 inches high and 2 inches thick, with a 3.5-inch strap width and a 2.27-inch depth.
What does this Dorman cooler do after a factory one fails?
Dorman 904-955 is engineered to help maintain proper transmission fluid temperature and protect the transmission from damage when the factory cooler has failed from contamination, heat or impact.
