Rear Drive Shaft for 2011-2018 Ram 4500 & More - Dorman 946-516

$489.99

Vehicles this part fits

    Part number: 946-516
    UPC: 885484440388
    Condition: New
    Weight: 106.80 LBS
    Item Package Quantity: 1
    $489.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Drive Shaft P/N:946-516
    Dorman - OE Solutions Drive Shaft P/N:946-516
    $489.99
    $489.99

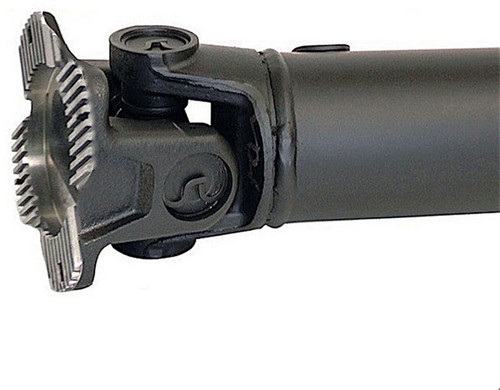

    Send engine torque back to the rear axle with this Dorman drive shaft, part number 946-516, a rear 2-piece steel driveshaft assembly. It is a direct-fit replacement for the listed applications: the 2008-2010 Dodge Ram 4500, 2008-2010 Dodge Ram 5500, 2011-2018 Ram 4500 and 2011-2018 Ram 5500 (engine: All), one per vehicle.

    • Ready to install: This Dorman OE Solutions drive shaft arrives fully assembled and dynamically pre-balanced for a quick, straightforward installation.
    • DOM steel tubing: The shaft is made from drawn over mandrel (DOM) seamless steel tubing. This tubing offers superior concentricity, uniform wall thickness, and more torsional strength and dent resistance than standard welded steel.
    • All-new construction: Built in the USA with 100% new tubing, yokes and U-joints.
    • Protective packaging: Foam-in-place packaging is designed to deliver the assembly in the same install-ready condition in which it left the facility.

    Specifications: The shaft has a 4-inch diameter, a 0.095-inch wall thickness and a drive shaft length of 109.87 inches, with bolt-on connections at both ends. It has a slip yoke, is greaseable, and has an adjustable overall length. The package contains one driveshaft; CV joints and an axle nut are not included.

    Signs a driveshaft may need replacing include vibration that builds with speed, a clunk when shifting into gear, or squeaking from a worn U-joint. Diagnose the cause first, since other driveline components can produce similar symptoms.

    Interchange: 52123030AB · 52123030AC

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    52123030AB, 52123030AC

    Frequently Asked Questions

    Which trucks does the 946-516 driveshaft fit?

    It is listed for the 2008-2010 Dodge Ram 4500, 2008-2010 Dodge Ram 5500, 2011-2018 Ram 4500 and 2011-2018 Ram 5500 (engine: All), one per vehicle.

    Is this a front or rear driveshaft?

    It is a rear 2-piece steel driveshaft assembly. It measures 109.87 inches long, with a 4-inch shaft diameter and a 0.095-inch wall thickness.

    Does it arrive assembled and balanced?

    Yes. It ships fully assembled and dynamically pre-balanced. It has bolt-on connections at both ends, a slip yoke, and an adjustable overall length.

    Are CV joints or an axle nut included?

    No. The package contains one driveshaft only. CV joints and an axle nut are not included.

    Can this driveshaft be greased?

    Yes, it is a greaseable driveshaft. Follow your vehicle's service information for the lubrication points and service intervals.
