Rear Drive Shaft for 2013-2019 Cadillac ATS - Dorman 986-077

$719.99

Vehicles this part fits

    Part number: 986-077
    UPC: 889245398116
    Condition: New
    Weight: 28.40 LBS
    Item Package Quantity: 1
    $719.99

    Out of stock

    Have questions?

    Dorman - OE Solutions Drive Shaft P/N:986-077
    Dorman - OE Solutions Drive Shaft P/N:986-077
    $719.99
    $719.99

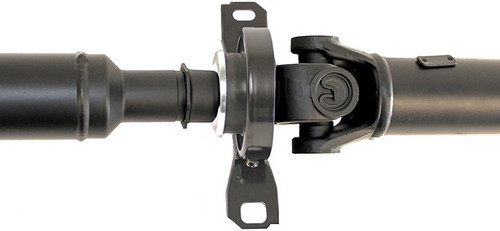

    Dorman 986-077 rear drive shaft for the 2013-2019 Cadillac ATS carries engine torque from the transmission to the rear axle. This Dorman drive shaft is a two-piece steel assembly with a slip yoke, so its overall length adjusts.

    • Part of the Dorman OE Solutions line
    • Arrives fully assembled and dynamically pre-balanced
    • Drawn over mandrel (DOM) seamless steel tubing for concentricity and uniform wall thickness
    • All-new tubing, yokes and U-joints
    • Greaseable shaft with bolt-on ends

    Quick facts

    • Part: Dorman 986-077 drive shaft
    • Fits: 2013-2019 Cadillac ATS
    • Position: Rear
    • Material: Steel
    • Condition: New

    A worn drive shaft or worn U-joints can show up as vibration at speed, a clunk when you accelerate or shift, or grease leaking around a joint. Before you replace this shaft, rule out tire or wheel balance and a worn rear differential or mount, since those can cause similar vibration.

    Fits

    This is a direct-fit rear drive shaft for the 2013-2019 Cadillac ATS, which takes one. This listing is one drive shaft.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 1
    • Shaft diameter: 2.5 in
    • Overall length: 53.25 in, adjustable
    • Compressed length: 51.75 in
    • Wall thickness: 0.083 in
    • Ends: bolt-on at both ends

    Build and materials

    • Type: 2-piece driveshaft assembly with slip yoke
    • Shaft material: Steel
    • Greaseable: Yes
    • Universal joints: included
    • CV joints and axle nut: not included
    • Condition: New
    • Country of origin: United States

    In the box

    One drive shaft with its universal joints. CV joints and an axle nut are not included.

    Interchange: D86077 · 20762355 · 22935467 · 23121561 · 23282616

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    D86077, 20762355, 22935467, 23121561, 23282616

    Frequently Asked Questions

    Is the Dorman 986-077 the right rear drive shaft for the 2013-2019 Cadillac ATS?

    Yes. Dorman 986-077 is a rear drive shaft for the 2013-2019 Cadillac ATS, and the ATS takes one. This listing is one drive shaft.

    Does this Dorman OE Solutions drive shaft come with U-joints or CV joints?

    This drive shaft includes the universal joints, but CV joints and an axle nut are not included.

    What is this Dorman drive shaft made of?

    Dorman 986-077 has a steel shaft made from drawn over mandrel (DOM) seamless steel tubing, 2.5 in in diameter with a 0.083 in wall thickness.

    Is the length of this rear drive shaft adjustable?

    Yes. Its slip yoke lets the overall length adjust: Dorman 986-077 measures 53.25 in long and 51.75 in compressed.

    Is this rear drive shaft greaseable?

    Yes. The shaft is greaseable, and both of its ends are bolt-on.
