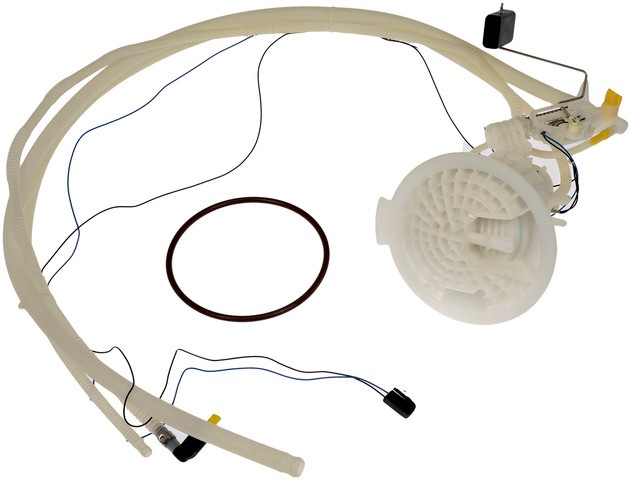

Dorman 692-271 right fuel tank sending unit for the 2006-2010 Dodge Charger V6 2.7L or 3.5L, the 2006-2019 Charger V8 5.7L, the 2011-2019 Charger V6 3.6L, the 2016-2019 Charger V8 6.4L and other vehicles reports the fuel level in the tank to the fuel gauge. This Dorman fuel tank sending unit replaces a unit whose internal sensor has stopped working.
- Internal sensor with a resistance of 1000 ohms when empty and 52 ohms when full

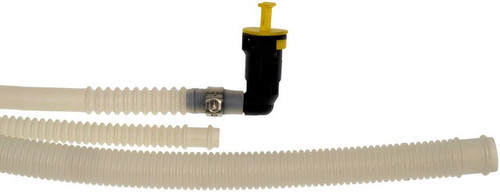

- Three quick-connect inlets (0.5, 0.313 and 0.25 in) and one 0.375 in quick-connect outlet
- Tank seal and regulator included with the sending unit
- Two-wire design with female pin terminals and a black male rectangular connector
Quick facts
- Part: Dorman 692-271 fuel tank sending unit
- Fits: 2006-2010 Dodge Charger V6 2.7L or 3.5L, the 2006-2019 Charger V8 5.7L, the 2011-2019 Charger V6 3.6L, the 2016-2019 Charger V8 6.4L and other vehicles
- Position: Right
- Condition: New
A fuel gauge that reads erratically, sticks or no longer matches the tank level can mean the sensor in the sending unit has worn out. The fuel pump, the wiring and its connector, or the gauge cluster can be behind these signs too, so find the cause before buying. This listing is one right-side unit; the left side is its own part.
Fits
The 2005-2010 Chrysler 300 V6 2.7L or 3.5L, the 2005-2019 300 V8 5.7L, the 2011-2019 300 V6 3.6L, the 2009-2010 Dodge Challenger V6 3.5L, the 2009-2019 Challenger V8 5.7L, the 2011-2019 Challenger V6 3.6L and the 2016-2019 Challenger V8 6.4L take this direct-fit replacement along with the Charger runs above and more, and the fitment calls for one right-side unit.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
- Outside diameter: 152 mm
- Tank seal outside diameter: 11.89 in
- Inlet diameters: 0.5 in, 0.313 in, 0.25 in
- Inlet fitting thread size: 0.25 in
- Outlet diameter: 0.375 in
- Outlet fitting thread size: 0.375 in
Build and materials
- Condition: New
- Fuel type: Gas
- Resistance: 1000 ohms empty, 52 ohms full
- Float level: not adjustable
- Inlet and outlet attachment: quick connect
- Connector: male, rectangular, black, with 2 female pin terminals
- Wires: 2, 20 gauge
- Country of origin: China
In the box
One fuel tank sending unit with a tank seal and a regulator. A fuel pump, lock ring, strainer and wiring harness are not included, and the old lock ring may not be reusable.
Interchange: P76662T · 5136023AA · 5136023AB · 5136023AC · 5136023AD · 5136023AE · 5136023AF · RL136023AC · RL136023AD · FT4018 · SP7050M · 150374A
This part cross-references / interchanges with the following part numbers:
P76662T, 5136023AA, 5136023AB, 5136023AC, 5136023AD, 5136023AE, 5136023AF, RL136023AC, RL136023AD, FT4018, SP7050M, 150374A
Frequently Asked Questions
Is this the right Dodge Charger fuel tank sending unit for a 2011-2019 Dodge Charger V6 3.6L?
Yes. Dorman 692-271 is listed for the 2011-2019 Charger V6 3.6L, which takes one right-side unit. If your car isn't named here, look it up in the "Vehicles it fits" section.
Does this Dorman fuel sending unit come with the fuel pump?
No. This listing is one right-side sending unit with a tank seal and a regulator; the fuel pump, lock ring, strainer and wiring harness are not included.
What resistance does the Dorman 692-271 sending unit read when the tank is empty and full?
Dorman 692-271 is rated 1000 ohms empty and 52 ohms full. Its float level is not adjustable.
Which fittings does this right fuel tank sending unit use?
This sending unit has three quick-connect inlets (0.5, 0.313 and 0.25 in) and one 0.375 in quick-connect outlet. Its electrical connector is male and rectangular, with two female pin terminals.
How big is the tank seal on this fuel tank sending unit?
The tank seal on Dorman 692-271 measures 11.89 in across its outside diameter, and the seal comes with the unit. The unit itself is 152 mm in outside diameter.
