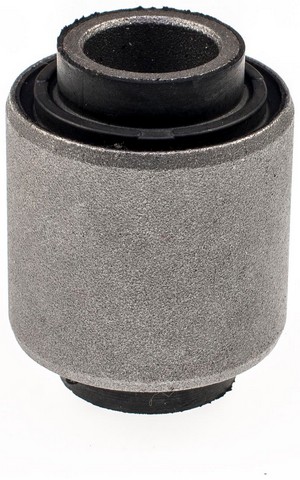

Upper Control Arm Bushing for 1994-1999 Land Rover Discovery & More - Dorman 533-685

$38.99

Vehicles this part fits

    Part number: 533-685
    UPC: 194883737747
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $38.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-685
    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-685
    $38.99
    $38.99

    Dorman 533-685 upper control arm bushing for the 1994-1999 Land Rover Discovery and other vehicles sits at the control arm pivot and absorbs suspension movement. This suspension control arm bushing is a rubber and steel part; when the rubber wears out, the arm can move more than it should.

    • Rust-resistant coating
    • Rubber and steel construction, with a rubber design made for durability
    • Replaces the worn bushing alone, so the control arm itself stays in place
    • Quality-inspected to confirm it meets Dorman's product standards
    • Dorman OE Solutions product line

    Quick facts

    • Part: Dorman 533-685 control arm bushing
    • Also called: suspension control arm bushing
    • Fits: 1994-1999 Land Rover Discovery and other vehicles
    • Position: Front upper, rear upper, rear arm to frame (upper)
    • Material: Rubber and steel
    • Condition: New

    A worn bushing can show up as a clunk over bumps, uneven tire wear or loose, wandering steering. Ball joints, shocks and other suspension parts can be behind these signs too, so find the cause before buying a bushing.

    Fits

    This control arm bushing is a direct-fit replacement for the 1994-1999 Land Rover Discovery, the 1994-1995 and 1997 Land Rover Defender 90 and the 1987-1995 Land Rover Range Rover.

    Specifications

    Fit and size

    • Position: front upper, rear upper, rear arm to frame (upper)
    • Quantity per vehicle: 2
    • Inside diameter: 19 mm
    • Outside diameter: 41.6 mm
    • Mounting hole diameter: 18.4 mm
    • Distance between mounting holes: 62.8 mm
    • Length: 53.5 mm
    • Width: 60 mm
    • Height: 66.2 mm
    • Wall thickness: 23.8 mm

    Build and materials

    • Material: rubber and steel
    • Coating: rust-resistant
    • Grade: standard replacement
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One bushing. The vehicles take two, so order two and fit them together. Mounting hardware, a bracket and a dust boot are not included; plan on new bolts, since the old ones may not be reusable.

    Interchange: 602.22003
    NTC1773 · K200838 · FB1172

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NTC1773, 602.22003, K200838, FB1172

    Frequently Asked Questions

    Does the Dorman control arm bushing 533-685 fit the 1994-1999 Land Rover Discovery?

    Yes. Dorman 533-685 fits the 1994-1999 Land Rover Discovery, and the vehicle takes two of these bushings.

    Is this Range Rover control arm bushing right for the 1987-1995 Land Rover Range Rover?

    Yes. Dorman 533-685 fits the 1987-1995 Land Rover Range Rover, and that vehicle takes two.

    Do I need new bolts and a bracket with this 533-685 bushing?

    Yes, plan on them. This listing is one bushing; mounting hardware, a bracket and a dust boot are not included, and old bolts may not be reusable.

    How big is the Dorman 533-685 bushing?

    Inside diameter is 19 mm and outside diameter is 41.6 mm. Length is 53.5 mm, the mounting hole is 18.4 mm and the mounting holes are 62.8 mm apart.

    How can I tell if the rubber in this control arm bushing is worn?

    Cracked or torn rubber, a clunk over bumps or uneven tire wear can all be signs. A shop can inspect the suspension if you are unsure.
