Front Upper Control Arm Bushing for 1997-2006 Jeep Wrangler & More - Dorman 533-905

$18.99

Vehicles this part fits

    Part number: 533-905
    UPC: 194883742147
    Condition: New
    Weight: 1.40 LBS
    Item Package Quantity: 1
    $18.99
    Adding to cart… The item has been added

    Have questions?

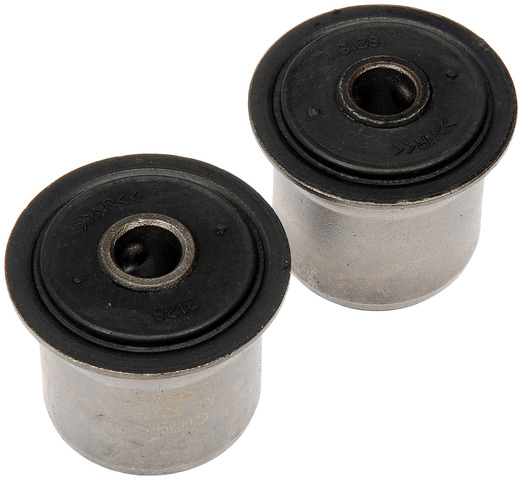

    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-905
    Dorman - OE Solutions Suspension Control Arm Bushing P/N:533-905
    $18.99
    $18.99

    Dorman 533-905 front upper control arm bushing for the 1997-2006 Jeep Wrangler and other vehicles cushions the control arm pivot point. It lets you replace just the worn bushing instead of the complete control arm.

    • Steel and rubber construction, 60 mm outside diameter and 12.2 mm inside diameter
    • Rust-resistant coating
    • Rubber design for durability and a long service life
    • Replaces the worn bushing alone, so the control arm itself stays in place
    • Part of the Dorman OE Solutions line, graded standard replacement

    Quick facts

    • Part: Dorman 533-905 control arm bushing
    • Also called: suspension control arm bushing
    • Fits: 1997-2006 Jeep Wrangler and other vehicles
    • Position: Front upper
    • Material: Steel and rubber
    • Condition: New

    A worn suspension control arm bushing can show up as a clunk over bumps, loose or vague steering, or uneven tire wear, though other worn suspension parts can produce those symptoms too. With the vehicle parked and the engine off, look at the visible rubber for cracks, tears or flattening, and have a shop find the cause if it looks sound.

    Fits

    This front upper control arm bushing fits the 1997-2006 Jeep Wrangler, the 1988-2001 Jeep Cherokee and the 1997-2006 Jeep TJ, and each takes two. Plan to replace the bushings as a pair, because this listing is a single bushing. If your Jeep is not among those, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front upper
    • Quantity per vehicle: 2
    • Outside diameter: 60 mm
    • Inside diameter: 12.2 mm
    • Mounting hole diameter: 10.5 mm
    • Distance between mounting holes: 51 mm
    • Wall thickness: 23.8 mm
    • Length: 60 mm
    • Height: 50.8 mm

    Build and materials

    • Type: Bushing
    • Material: Steel and rubber
    • Coating: Rust-resistant
    • Grade: Standard replacement
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One control arm bushing. Mounting hardware, a bracket and a dust boot are not included, so plan on new hardware, since the old pieces may not be reusable.

    Interchange: K3128 · GK3128 · MK3128 · MK3162

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    K3128, GK3128, MK3128, MK3162

    Frequently Asked Questions

    Is Dorman 533-905 one of the 1997-2006 Jeep TJ upper control arm bushings?

    Yes. Dorman 533-905 is the front upper control arm bushing listed for the 1997-2006 Jeep TJ, and that Jeep takes two. If your Jeep is not named, check the "Vehicles it fits" section.

    Does this front upper control arm bushing include a bracket or dust boot?

    No. Dorman 533-905 is one bushing; mounting hardware, a bracket and a dust boot are not included.

    What are the diameters of this front upper control arm bushing?

    The outside diameter is 60 mm and the inside diameter is 12.2 mm. The mounting hole diameter is 10.5 mm, with 51 mm between the mounting holes.

    Is this control arm bushing rubber or steel?

    Both. It is made of steel and rubber and has a rust-resistant coating.

    Is K3128 an interchange number for Dorman 533-905?

    Yes. K3128 is one of the numbers this bushing replaces, along with GK3128, MK3128 and MK3162.
