Front Left Lower Control Arm for 1990-1994 Mazda 323 & More - Dorman 520-817

$53.99

Vehicles this part fits

    Part number: 520-817
    UPC: 019495114185
    Condition: New
    Weight: 9.60 LBS
    Item Package Quantity: 1
    $53.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm P/N:520-817
    Dorman - OE Solutions Suspension Control Arm P/N:520-817
    $53.99
    $53.99

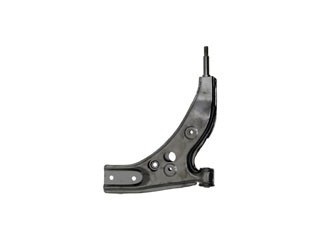

    Dorman 520-817 front left lower control arm for the 1990-1994 Mazda 323 and other vehicles links the front left wheel to the chassis and lets it move with the suspension. It is precision-engineered to match the design and dimensions of original components.

    • Dorman OE Solutions control arm in stamped steel with a bent shape
    • Rubber bushings included with the arm
    • Powder-coated finish resists rust and corrosion
    • Standard replacement grade
    • Press-in end 2 type with a 66.6 mm distance between mounting holes

    Quick facts

    • Part: Dorman 520-817 control arm
    • Also called: suspension control arm
    • Fits: 1990-1994 Mazda 323 and other vehicles
    • Position: Front left lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, uneven front tire wear or a pull while driving can mean a worn control arm or its bushings. These signs alone do not prove the arm is at fault, because a worn sway bar link can make a similar knock. The part is also called a suspension control arm.

    Fits

    It is a control arm for the 1990-1994 Mazda 323 and the 1990-1994 Mazda Protege. This listing is one arm for the front left, and that side takes one; the front right is a separate part ordered on its own, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per application: 1
    • End 2 type: press in
    • Bushing inside diameter: 14.3 mm
    • Bushing outside diameter: 39.6 mm
    • Bushing length: 92 mm
    • Distance between mounting holes: 66.6 mm

    Build and materials

    • Control arm material: steel
    • Construction: stamped
    • Finish: powder coated
    • Bushing material: rubber
    • Grade: standard replacement
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One control arm with bushings. The ball joint, mounting hardware and grease fitting are not included; plan on new bolts, as the old ones may not be reusable.

    Interchange: 101-6589
    TC855 · CA12049 · 5CB76003 · RK640414 · B45534350B · B45534350E · BR7034350 · BR7034350A · BR7034350B · BR7034350C · BR7034350D · BR7034350E · E01634350G · E01634350H · GS9681 · CMS9681 · 2605972

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    101-6589, TC855, CA12049, 5CB76003, RK640414, B45534350B, B45534350E, BR7034350, BR7034350A, BR7034350B, BR7034350C, BR7034350D, BR7034350E, E01634350G, E01634350H, GS9681, CMS9681, 2605972

    Frequently Asked Questions

    Is this Dorman lower control arm made for the front left of the 1990-1994 Mazda 323?

    Yes. Dorman 520-817 is a front left lower control arm for the 1990-1994 Mazda 323 and the 1990-1994 Mazda Protege. The front right side is a separate part.

    Does the Dorman control arm come with bushings and a ball joint?

    Yes for the bushings, no for the ball joint. Mounting hardware and the grease fitting are not included, so plan on new bolts.

    What size are the bushings on the 520-817 control arm?

    The rubber bushings on Dorman 520-817 measure 14.3 mm inside diameter and 39.6 mm outside diameter, and are 92 mm long.

    How can I tell if the bushings on a control arm are worn?

    A clunk over bumps, a pull while driving or uneven tire wear can be signs of worn control arm bushings. A shop can inspect the arm and its bushings.

    Does the Dorman 520-817 replace number 101-6589?

    Yes. 101-6589 is one of the other numbers that Dorman 520-817 replaces, along with the rest on the Interchange line.
