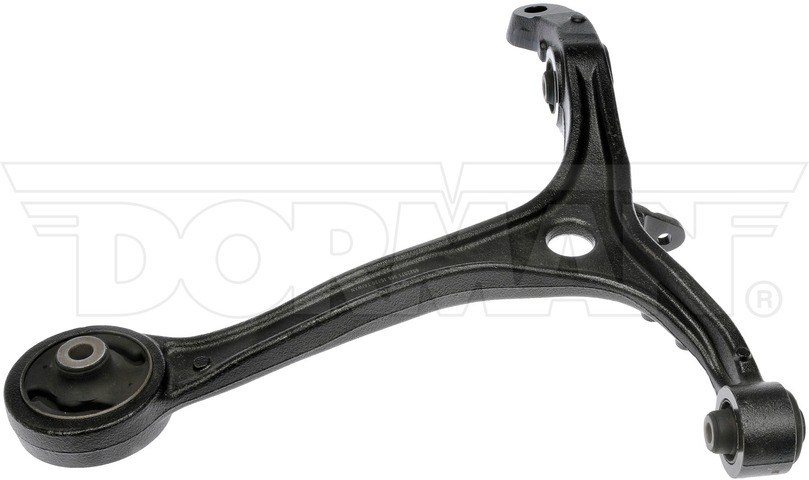

Dorman 522-071 front left lower control arm for the 2012-2015 Honda Crosstour and other vehicles links the wheel to the body. This Dorman lower control arm lets the wheel move up and down with the suspension.
- Dorman OE Solutions line, standard replacement grade
- Steel arm with a powder-coated finish to resist rust and corrosion
- Rubber bushing included, 39.6 mm outside diameter and 92 mm long
- Casting/forged arm with a press-in end
Quick facts
- Part: Dorman 522-071 control arm
- Also called: suspension control arm
- Fits: 2012-2015 Honda Crosstour and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
A worn arm or bushing can show up as a clunk over bumps, loose steering feel or uneven tire wear. Before you replace the arm, rule out a worn strut, sway bar link or ball joint, since those can make similar noises. This listing is one arm for the front left; the front right is a separate part, and both sides are normally replaced together.
Fits
It is a direct-fit replacement for the 2012-2015 Honda Crosstour and the 2010-2011 Honda Accord Crosstour.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1
- Length: 262.5 mm
- Bushing inside diameter: 14.3 mm
- Bushing outside diameter: 39.6 mm
- Bushing length: 92 mm
Build and materials
- Control arm type: casting/forged
- Material: steel
- Finish: powder coated
- Bushing material: rubber
- End 2 type: press in
- Condition: new
- Country of origin: Turkey
In the box
One control arm with its bushing. This listing holds one arm, and the front left takes one. A ball joint, mounting hardware and a grease fitting are not included; the old fasteners may not be reusable, so plan on new bolts.
Interchange: 102-7874
CA14674 · 51360TP6C00 · 9CB60427 · RK643232 · GS601253 · CMS601253 · 2608787 · X17CA0186
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
102-7874, CA14674, 51360TP6C00, 9CB60427, RK643232, GS601253, CMS601253, 2608787, X17CA0186
Frequently Asked Questions
Does the Dorman control arm 522-071 fit the 2012-2015 Honda Crosstour?
Yes. Dorman 522-071 is a front left lower control arm for the 2012-2015 Honda Crosstour. The front right side is a separate part.
Will 522-071 fit a 2010-2011 Honda Accord Crosstour?
Yes. Dorman 522-071 is also listed for the 2010-2011 Honda Accord Crosstour as a front left lower control arm, and that side takes one.
Does the Dorman OE Solutions control arm come with bushings?
Yes, the rubber bushing is included. A ball joint, mounting hardware and a grease fitting are not part of this listing.
What are the bushing sizes on the Dorman OE Solutions suspension control arm?
The bushing measures 39.6 mm outside diameter, 14.3 mm inside diameter and 92 mm long. The steel arm is 262.5 mm long with a powder-coated finish.
Which signs can mean a Dorman suspension control arm is worn?
A clunk over bumps, loose steering feel or uneven tire wear can be signs of a worn arm or bushing. A shop can inspect the bushing for cracked or split rubber.
