Rear Left Lower Control Arm for 2009-2012 Ford Fusion & More - Dorman 526-003

$117.99

Vehicles this part fits

    Part number: 526-003
    UPC: 889245953995
    Condition: New
    Weight: 17.60 LBS
    Item Package Quantity: 1
    $117.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm P/N:526-003
    Dorman - OE Solutions Suspension Control Arm P/N:526-003
    $117.99
    $117.99

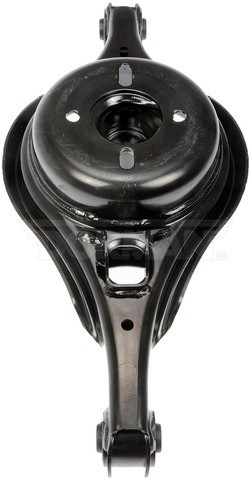

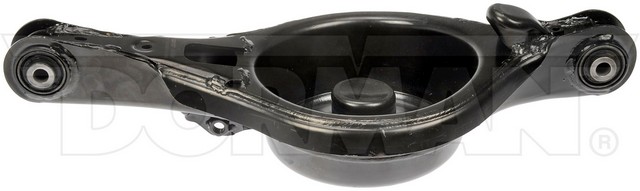

    Dorman 526-003 rear left lower control arm for the 2009-2012 Ford Fusion and other vehicles links the rear wheel assembly to the body. Also known as a suspension control arm, it keeps the wheel located as the suspension moves and replaces a bent, rusted or worn arm.

    • Part of the Dorman OE Solutions line
    • Stamped steel arm with a powder-coated finish that resists rust and corrosion
    • Rubber bushings included with the arm
    • Straight arm with 456.5 mm between the mounting holes
    • Tested by a team of product and quality engineers

    Quick facts

    • Part: Dorman 526-003 control arm
    • Also called: suspension control arm
    • Fits: 2009-2012 Ford Fusion and other vehicles
    • Position: Rear left lower rearward
    • Material: Steel
    • Condition: New

    A worn control arm or tired bushings can show up as a clunk over bumps, uneven rear tire wear or a car that wanders. With the engine off, look at the rear tires for uneven wear, then have a shop inspect the arm and bushings before you buy, since other suspension parts can make similar noises.

    Fits

    This lower control arm fits the 2009-2012 Ford Fusion, the 2009-2012 Lincoln MKZ and the 2009-2011 Mercury Milan, and each takes one on this side. This listing is a single arm for the rear left; the rear right is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: rear left lower rearward
    • Quantity per vehicle: 1 on this side
    • Length: 456.5 mm (distance between mounting holes 456.5 mm)
    • Bushing inside diameter: 12.2 mm
    • Bushing outside diameter: 42.02 mm
    • Bushing length: 51.5 mm

    Build and materials

    • Construction: stamped, straight shape
    • Control arm material: steel
    • Finish: powder coated
    • Bushing material: rubber
    • Grade: standard replacement
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with its bushings. The ball joint, grease fitting and mounting hardware are not included, so plan on new mounting bolts, since the old ones may not be reusable.

    Interchange: TC7383 · 9E5Z5A649B · 9E5Z5A649D · RK643072 · GS401103 · CMS401103 · 2607392 · 8CB40214

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TC7383, 9E5Z5A649B, 9E5Z5A649D, RK643072, GS401103, CMS401103, 2607392, 8CB40214

    Frequently Asked Questions

    Is this the 2009-2012 Ford Fusion control arm for the rear left lower position?

    Yes. Dorman 526-003 is a rear left lower control arm for the 2009-2012 Ford Fusion. The rear right side takes a separate arm.

    Is this a 2012 Ford Fusion lower control arm?

    Yes. A 2012 Ford Fusion falls within the 2009-2012 years this arm is listed for. It is the rear left lower arm, and the right side is ordered separately.

    Does this Dorman control arm come with bushings?

    Yes. Dorman 526-003 includes rubber bushings. The ball joint, grease fitting and mounting hardware are not included.

    Is this control arm steel or aluminum?

    It is stamped steel with a powder-coated finish. Its bushings are rubber.

    What size are the bushings on this rear control arm?

    The bushing measures 12.2 mm inside diameter, 42.02 mm outside diameter and 51.5 mm long.
