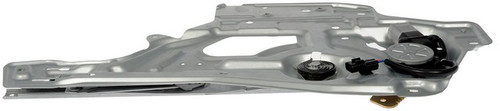

Dorman 748-656 rear left window regulator with motor for the 2016-2025 Chevrolet Malibu moves the door glass up and down. Also called a window regulator and motor assembly, this Dorman window regulator is a direct replacement meant to match the original unit's performance.
- Dorman OE Solutions window regulator supplied with its motor
- Plug-in connector with two male blade terminals
- Plastic gear with 32 teeth and a metal and plastic frame
- Maximum lift height of 350 mm
- Complies with Federal Motor Vehicle Safety Standards (FMVSS)
Quick facts
- Part: Dorman 748-656 window regulator with motor
- Also called: window regulator and motor assembly
- Fits: 2016-2025 Chevrolet Malibu
- Position: Rear left
- Material: Metal and plastic
- Condition: New
A rear left window that moves slowly, stalls partway or grinds inside the door can mean a worn motor or regulator. Before you replace this window regulator with motor, rule out a blown fuse, a faulty window switch and a damaged door wiring connector, since any of them can leave the glass stuck.
Fits
It fits the 2016-2025 Chevrolet Malibu and takes one for the rear left door. This listing is one side only; the rear right is ordered separately, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity for the rear left: 1
- Maximum lift height: 350 mm
- Maximum width: 200 mm
- Terminals: 2 male blade terminals, plug-in connector
- Gear teeth: 32
- Attachment type: Bolt
Build and materials
- Material: Metal and plastic
- Gear material: Plastic
- Operation: Electric, automatic down
- Anti-pinch motor: No
- Condition: New
- Country of origin: Taiwan
In the box
One window regulator with motor. Mounting hardware, a wiring harness and installation instructions are not included; plan on new bolts, as the old ones may not be reusable.
Interchange: 382074 · 23374449 · 84091143 · 84198844 · 84261382 · 84451822 · 84594393
This part cross-references / interchanges with the following part numbers:
382074, 23374449, 84091143, 84198844, 84261382, 84451822, 84594393
Frequently Asked Questions
Is this the right window motor for the 2016-2025 Chevrolet Malibu?
Yes. Dorman 748-656 is a rear left window regulator with motor for the 2016-2025 Chevrolet Malibu; the rear right door takes a separate part.
What is included with this Dorman window regulator with motor?
Dorman 748-656 includes one window regulator with motor. Mounting hardware, a wiring harness and installation instructions are not included.
Does this Dorman window motor connect with a plug-in connector?
Yes. Dorman 748-656 has a plug-in connector with two male blade terminals.
What is the gear in this rear left window regulator made of?
The gear is plastic with 32 teeth. The frame is metal and plastic.
Is the motor on this rear left window regulator with motor anti-pinch?
No. The motor is not an anti-pinch motor, and it is listed for automatic down operation.
