Front Left Window Regulator with Motor for 2019-2025 Acura RDX - Dorman 751-134

$256.99

Vehicles this part fits

    Part number: 751-134
    UPC: 019495304920
    Condition: New
    Weight: 6.08 LBS
    Sold as: 1 for the front left
    $256.99
    Adding to cart… The item has been added

    Have questions?

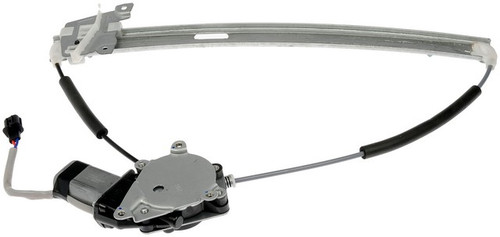

    Dorman - OE Solutions Window Motor and Regulator Assembly P/N:751-134
    Dorman - OE Solutions Window Motor and Regulator Assembly P/N:751-134
    $256.99
    $256.99

    Dorman 751-134 front left window regulator with motor for the 2019-2025 Acura RDX raises and lowers the front left door glass.

    • Dorman OE Solutions line, standard replacement grade
    • Motor and cable regulator supplied together in one assembly
    • 12 V DC motor rated at 30 W
    • Plug-in connector with 6 male blade terminals
    • Bolt-on mounting through 3 mounting holes
    • FMVSS (Federal Motor Vehicle Safety Standards) compliant

    Quick facts

    • Part: Dorman 751-134 window regulator with motor
    • Also called: window regulator and motor assembly
    • Fits: 2019-2025 Acura RDX
    • Position: Front Left
    • Material: Plastic, metal
    • Condition: New

    A front left window that moves slowly, grinds or stops partway can mean this window regulator and motor assembly is worn, though the window switch or a fuse can be behind the same behavior, so look at those first. This listing is one piece for the front left. The front right door takes its own, which is ordered separately.

    Fits

    This window regulator with motor fits the 2019-2025 Acura RDX. It is a direct replacement designed to perform like the original equipment assembly, and it is engineered to help restore original equipment functionality when a factory assembly fails from damage, fatigue or collision impact.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity: 1 for the front left
    • Maximum lift height: 475 mm
    • Maximum width: 450 mm
    • Motor outside diameter: 22.2 mm
    • Mounting holes: 3
    • Terminals: 6

    Build and materials

    • Type: cable regulator with electric motor
    • Material: plastic and metal
    • Mounting: bolt-on
    • Connection: plug-in, male blade terminals
    • Voltage: 12 V DC
    • Motor power: 30 W
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One window regulator with motor. Mounting hardware, a wiring harness and installation instructions are not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: 72250TJBA01

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    72250TJBA01

    Frequently Asked Questions

    Does the Dorman 751-134 fit the front left door of the 2019-2025 Acura RDX?

    Yes. Dorman 751-134 is the front left window regulator with motor for the 2019-2025 Acura RDX; the front right door takes a separate part.

    Does this Dorman window motor come with the regulator?

    Yes. The listing is one window regulator with motor. Mounting hardware, a wiring harness and installation instructions are not included.

    Is the Dorman window lift motor on this assembly 12 volts?

    Yes. Dorman 751-134 has a 12 V DC motor rated at 30 W, with a 22.2 mm outside diameter.

    Does Dorman 751-134 interchange with 72250TJBA01?

    Yes. 72250TJBA01 is listed as an interchange number for this window regulator with motor.

    Is this Dorman OE Solutions window regulator plug-in or hardwired?

    It is plug-in. The motor connects through a plug-in connector with 6 male blade terminals, and the assembly bolts on through 3 mounting holes.
