Cylinder Head Bolt Set for 1990-2001 Toyota Camry & More - FEL-PRO ES 72154

$35.99

Vehicles this part fits

    Part number: ES72154
    UPC: 084113869891
    Condition: New
    Weight: 0.72 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $35.99
    Adding to cart… The item has been added

    Have questions?

    FEL-PRO Engine Cylinder Head Bolt Set P/N:ES 72154
    FEL-PRO Engine Cylinder Head Bolt Set P/N:ES 72154
    $35.99
    $35.99

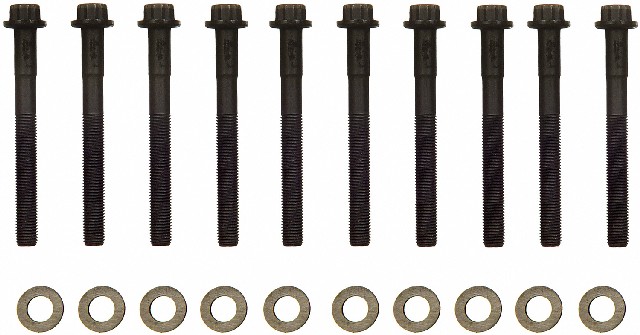

    FEL-PRO ES 72154 cylinder head bolt set for the 1990-1991 Toyota Camry 4-cylinder 2.0L, the 1992-2001 Camry 4-cylinder 2.2L and other vehicles clamps the cylinder head to the engine block. These FEL-PRO head bolts are torque-to-yield and not reusable, so they are replaced whenever the head comes off.

    • Head bolts supplied with washers
    • 12-point head drive with a 12 mm head size
    • 10 mm bolt diameter with a 1.25 thread pitch
    • Application-specific design validated for fit, form and function

    Quick facts

    • Part: FEL-PRO ES 72154 cylinder head bolt set
    • Also called: engine cylinder head bolt set
    • Fits: 1990-1991 Toyota Camry 4-cylinder 2.0L, the 1992-2001 Camry 4-cylinder 2.2L and other vehicles
    • Condition: New

    Head bolts are replaced when the cylinder head is removed, for example during a head gasket repair. Coolant loss, overheating or oil mixed with coolant can point to that job, but they can have other causes too. Before replacing anything, look for leaks at the head-to-block joint, and check the coolant level only with the engine cool.

    Fits

    The 1990-1991 Toyota Camry 4-cylinder 2.0L, the 1992-2001 Camry 4-cylinder 2.2L, the 1996-2000 Toyota RAV4 4-cylinder 2.0L and the 1999-2001 Toyota Solara 4-cylinder 2.2L take this head bolt set, and so do other vehicles. It is a direct-fit replacement that meets or exceeds all original equipment specifications.

    Specifications

    Fit and size

    • Quantity per vehicle: 1 set
    • Bolt and thread diameter: 10 mm
    • Thread pitch: 1.25
    • Critical length: 95 mm
    • Thread length: 56 mm
    • Head size: 12 mm

    Build and materials

    • Head drive: 12 point
    • Design: head bolts with washers
    • Reusable: No
    • Assembly lubricant: not included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One head bolt set with washers. Assembly lubricant is not included. This listing holds one set, and each vehicle takes one.

    Interchange: 0161001 · 27115 · 67337 · GS33355 · 779739 · 9010910132 · 9016910132 · 145500301

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    0161001, 27115, 67337, GS33355, 779739, 9010910132, 9016910132, 145500301

    Frequently Asked Questions

    Does the FEL-PRO ES 72154 fit the 1999-2001 Toyota Solara 4-cylinder 2.2L?

    Yes. FEL-PRO ES 72154 fits the 1999-2001 Toyota Solara 4-cylinder 2.2L. To see whether your own car is covered, look it up in the "Vehicles it fits" section of this page.

    What are the bolt dimensions in this set?

    Each bolt has a 10 mm diameter, a 1.25 thread pitch, a 95 mm critical length and a 56 mm thread length. The head is 12 mm with a 12-point drive.

    Can I reuse a FEL-PRO cylinder head bolt after taking it out?

    No. FEL-PRO ES 72154 is a torque-to-yield set listed as not reusable, so the bolts are replaced rather than put back in.

    Does this engine cylinder head bolt set include washers and assembly lubricant?

    It includes head bolts with washers. Assembly lubricant is not included.

    Is 9010910132 an interchange number for the FEL-PRO ES 72154?

    Yes. 9010910132 is one of the numbers on the Interchange line for FEL-PRO ES 72154.
