Right Cylinder Head Gasket for 1997-2010 Ford Explorer & More - FEL-PRO 26301 PT

$68.99

Vehicles this part fits

    Part number: 26301PT
    UPC: 614046847842
    Condition: New
    Weight: 0.70 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $68.99
    Adding to cart… The item has been added

    Have questions?

    FEL-PRO Engine Cylinder Head Gasket P/N:26301 PT
    FEL-PRO Engine Cylinder Head Gasket P/N:26301 PT
    $68.99
    $68.99

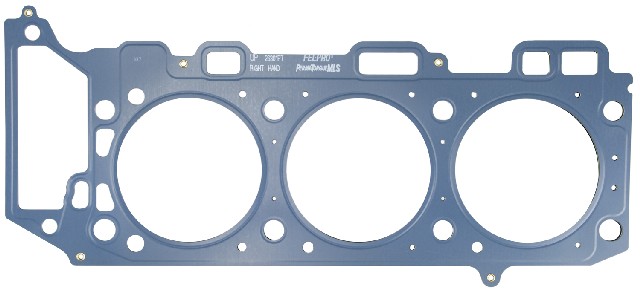

    FEL-PRO 26301 PT right cylinder head gasket for the 1997-2010 Ford Explorer V6 4.0L and other vehicles seals the joint between the cylinder head and the engine block. This FEL-PRO cylinder head gasket keeps combustion pressure, coolant and engine oil in their own passages.

    • PermaTorque series gasket with a proprietary coating that helps withstand rougher sealing surface finishes up to 80 Ra
    • Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
    • Multi-layered steel construction maintains sealing stress and accommodates head lift
    • Precise embossed sealing beads at all vital areas to eliminate leak paths
    • Embossments engineered to inhibit over-compression and maintain the seal under peak combustion pressures and temperatures
    • Engineered for the repair environment to help seal imperfect sealing surfaces

    Quick facts

    • Part: FEL-PRO 26301 PT cylinder head gasket
    • Also called: engine cylinder head gasket
    • Fits: 1997-2010 Ford Explorer V6 4.0L and other vehicles
    • Position: Right
    • Material: PermaTorque MLS
    • Condition: New

    A leaking engine cylinder head gasket can show up as coolant loss, overheating or milky oil. A warped cylinder head, a cracked block or a failed hose can be behind those signs too, so find the cause before buying. This listing is one gasket for the right side; the left side is a separate part, and both are normally replaced together.

    Fits

    The 1997-2010 Ford Explorer V6 4.0L, the 2005-2010 Ford Mustang V6 4.0L and the 2001-2011 Ford Ranger V6 4.0L each take one right-side gasket, and the part fits more vehicles besides. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Right
    • Quantity per application: 1
    • Thickness: 0.024 in
    • Cylinder bore diameter: 4.060 in
    • Head gasket bore: 4.055 in

    Build and materials

    • Material: PermaTorque MLS
    • Condition: New
    • Gasket sealant: not included
    • Country of origin: United States

    In the box

    One right cylinder head gasket. Gasket sealant is not included.

    Interchange: 200265 · 200615 · 4L5Z6051AA · 7L5Z6051A · 54195 · HG34633 · 611036300

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    200265, 200615, 4L5Z6051AA, 7L5Z6051A, 54195, HG34633, 611036300

    Frequently Asked Questions

    Is this the right Ford Ranger cylinder head gasket for a 2001-2011 model with the V6 4.0L?

    Yes. The FEL-PRO 26301 PT fits the 2001-2011 Ford Ranger V6 4.0L as its right-side gasket. For any other car, look it up in the "Vehicles it fits" section.

    Do FEL-PRO head gaskets like this one come with gasket sealant?

    No. The FEL-PRO 26301 PT does not include gasket sealant. The listing is one right cylinder head gasket.

    What thickness and bore does this right cylinder head gasket have?

    Thickness is 0.024 inch, and the head gasket bore is 4.055 inch for a 4.060 inch cylinder bore. The material is PermaTorque MLS.

    How can I tell if the right cylinder head gasket on my V6 4.0L has failed?

    Signs can include coolant loss, overheating or milky oil on the dipstick, which you check with the engine off and cool. A shop can test the cooling system and cylinders to confirm.

    Does the FEL-PRO 26301 PT replace number 4L5Z6051AA?

    Yes. 4L5Z6051AA is on the cross-reference list for the FEL-PRO 26301 PT, which is a right-side cylinder head gasket.
