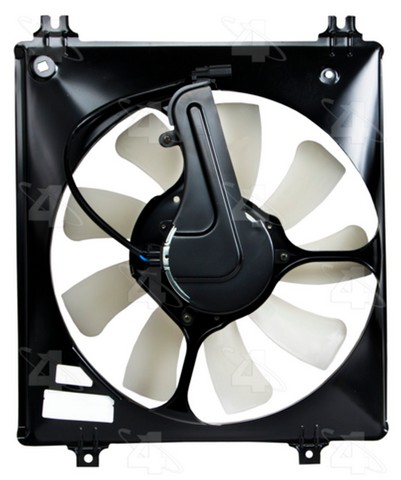

Four Seasons 76235 right A/C condenser fan for the 2009-2014 Acura TL pulls air through the condenser so the A/C can shed heat. It does this work when airflow is low, such as at idle or in slow traffic.
- Motor assembly with a metal shroud and a plastic fan blade
- Single fan driven by a 12-volt motor
- Rectangular female connector with two terminal pins on a 2-wire lead
- Ready for out-of-box installation
Quick facts
- Part: Four Seasons 76235 A/C condenser fan
- Also called: AC condenser fan assembly
- Fits: 2009-2014 Acura TL
- Position: Right
- Material: Plastic / Metal
- Condition: New
Weak cooling at idle or in slow traffic can mean the fan has stopped turning. A blown fuse, a bad relay, damaged wiring or a low refrigerant level can be behind those signs too, so track down the real cause before buying a new fan.
Fits
This listing is one right-side fan, a direct-fit replacement for the 2009-2014 Acura TL, which takes one on that side; the left side is ordered separately. Its design and performance meet or exceed O.E.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
- Fan quantity: 1
- Voltage: 12 V
- Mount type: OE mount
- Connector: rectangular, female, 1 connector
- Terminal pins: 2
- Connector type: 2 wire lead with connector
Build and materials
- Type: motor assembly
- Material: Plastic / Metal
- Blade material: plastic
- Shroud material: metal
- Condition: New
- Country of origin: China
In the box
One A/C condenser fan. Mounting hardware is not included, so plan on new fasteners since the old ones may not be reusable.
Interchange: 38615RK1A01 · 38616RK1A51 · 38616RK2A71 · 8552768 · 621404 · A11371 · 850549 · FA70826 · CF18116 · 611320
This part cross-references / interchanges with the following part numbers:
38615RK1A01, 38616RK1A51, 38616RK2A71, 8552768, 76235, 621404, A11371, 850549, FA70826, CF18116, 611320
Frequently Asked Questions
Is the Four Seasons 76235 the right-side condenser fan for the 2009-2014 Acura TL?
Yes. Four Seasons 76235 is a right-side A/C condenser fan for the 2009-2014 Acura TL, and that car takes one on this side.
What is included with this AC condenser fan assembly?
The listing is one A/C condenser fan. Mounting hardware is not included, so have new fasteners ready for the install.
What voltage and connector does the Four Seasons 76235 use?
The Four Seasons 76235 motor runs on 12 volts. Its connector is rectangular and female with 2 terminal pins on a 2-wire lead.
How can I check whether a condenser fan is damaged?
With the engine off and cool, look over the blade and shroud for cracks or damage. Weak A/C at idle or in slow traffic can be a sign, and a shop can test the motor's electrical side.
Does the Four Seasons 76235 motor turn as fast as the original?
Yes. The Four Seasons 76235 motor RPM is equivalent to or exceeds that of the OEM motor.
