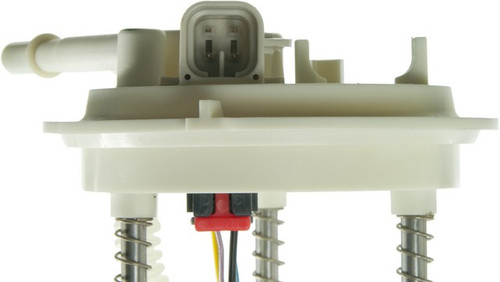

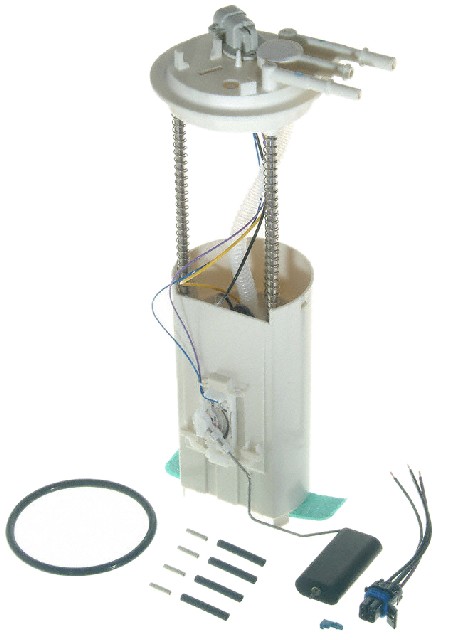

Carter P74778M fuel pump module for the 1997-2002 Chevrolet Express 2500 V6 4.3L, V8 5.0L or 5.7L, the 1999 Express 2500 V8 6.5L and other vehicles moves gasoline from the tank to the engine. It mounts in the tank and includes the fuel sending unit.
A failing fuel pump module can show up as hard starting, sputtering under load or an erratic fuel gauge. A fuse, a connector or the wiring can give these symptoms too, so with the engine off, start by looking at the fuel pump fuse and the wiring connector for damage; a shop can test fuel pressure. If the fuel pump assembly is the cause, this module replaces it.
This in-tank module is a direct-fit replacement for the 1997-2000 GMC Savana 3500 V8 7.4L and the 1997-2002 Chevrolet Express 1500 V6 4.3L, V8 5.0L or 5.7L, along with the Express 2500 above. The 1997-2000 GMC Savana 3500 V8 7.4L takes one module. If your van is not named here, look up its year and engine on the Buyer's Guide tab.
Fit and size
Build and materials
One fuel pump module with its fuel sending unit and a gasket or seal. Mounting hardware, lock ring, anti-rattle spring and fuel tank pressure sensor are not included; plan on a new lock ring and hardware rather than reusing the old ones.
Interchange: 953-0018 · 530-2270 · 402-P3966M
2920036 · MU1749 · E3966M · 67438 · 238245 · M319677 · FG0098 · 2630332 · FEP3966M · 19367490 · 25314352 · 25314777 · MPA27007 · C0361M · P7007M · A27007 · PN3008 · SP457M · C8009 · 150015 · D11111050TG · USEP3966M
This part cross-references / interchanges with the following part numbers:
Does the Carter P74778M fuel pump module fit a 1997-2000 GMC Savana 3500 V8 7.4L?
Yes. The Carter P74778M fits the 1997-2000 GMC Savana 3500 V8 7.4L, and that van takes one module. For another year or engine, look it up on the Buyer's Guide tab.
Does the Carter P74778M come with a lock ring or mounting hardware?
No. The Carter P74778M includes the fuel sending unit and a gasket or seal, but the lock ring, mounting hardware, anti-rattle spring and fuel tank pressure sensor are not included.
What size are the fittings on this in-tank fuel pump module?
The inlet and outlet fittings both have a 3/8 - 16 thread size. The outlet outside diameter is 0.37 in, and the module has one inlet and one outlet.
Is this fuel pump module built for gasoline?
Yes. This module is listed for gas, and its fuel sensor design resists corrosive fuel blends and additives. The housing is POM and the gasket or seal is nitrile rubber.
Does the Carter P74778M cross-reference to P7007M?
Yes. P7007M is on the interchange list for the Carter P74778M, along with numbers such as 953-0018 and 25314352.
