V-Belt for 1993-1995 Hino FA1415 & More - Gates TR22514

$35.99

Vehicles this part fits

    Part number: TR22514
    UPC: 072053277739
    Condition: New
    Weight: 0.53 LBS
    Item Package Quantity: 1
    $35.99
    Adding to cart… The item has been added

    Have questions?

    Gates Accessory Drive Belt P/N:TR22514
    Gates Accessory Drive Belt P/N:TR22514
    $35.99
    $35.99

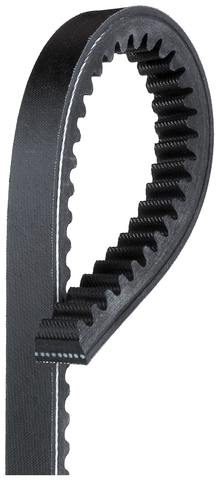

    Gates TR22514 v-belt for the 1993-1995 Hino FA1415 4-cylinder 3.8L and other vehicles and equipment carries engine power to the fan, alternator or water pump, depending on the application. It is a single-strand belt with an RA cross section, and it wedges into the pulley grooves to grip and turn them.

    • Gates Green Stripe Truck & Bus Series V-belt designed for heavy-duty truck, bus and off-road equipment applications
    • Belt body absorbs normal shock loads without damage
    • Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
    • High modulus, high strength polyester tensile cord
    • Oil and heat-resistant construction throughout the belt
    • Meets SAE J636b and SAE J637 specifications plus RMA oil and heat resistant standards and static conductivity requirements

    Quick facts

    • Part: Gates TR22514 v-belt
    • Fits: 1993-1995 Hino FA1415 4-cylinder 3.8L and other vehicles and equipment
    • Position: Fan and alternator, water pump and alternator, fan
    • Material: EPDM belt, polyester cord
    • Condition: New

    Squealing at start-up, cracks or a glazed side, or a charging warning light can mean the belt is worn or slipping. Before you fit a new one, look over each pulley with the engine off and cool for wobble, chips or rust in the grooves, since a damaged pulley can chew up a fresh belt. The count varies by engine: the 1993-1995 Hino FA1415 4-cylinder 3.8L takes one, and some other applications take two.

    Fits

    The 1993-1995 Hino FB1715 4-cylinder 3.8L and the 1995 UD (Nissan) UD2300LP truck are a match for this V-belt as well, and it fits many other vehicles and equipment beyond them.

    Specifications

    Fit and size

    • Position: Fan and alternator, water pump and alternator, fan
    • Quantity per vehicle: 1 or 2, varies by engine
    • Cross section: RA
    • Angle: 40°
    • Strand quantity: 1
    • Top width: 15 mm (0.594 in, 19/32 in)
    • Outside circumference: 1320 mm (52 in)
    • Effective length: 1304 mm (51.34 in)

    Build and materials

    • Type: Truck & Bus V-belt
    • Construction: Notched
    • Belt material: EPDM
    • Cord material: Polyester
    • Condition: New
    • Country of origin: United States

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Gates TR22514 V-belt fit the 1993-1995 Hino FA1415 4-cylinder 3.8L?

    Yes. The Gates TR22514 V-belt fits the 1993-1995 Hino FA1415 4-cylinder 3.8L; for any other truck or machine, look up your own model in the "Vehicles it fits" section before ordering.

    How long is this RA-section V-belt?

    This V-belt has a 1304 mm (51.34 in) effective length and a 1320 mm (52 in) outside circumference, with a 15 mm (19/32 in) top width and a 40° angle.

    Is this Gates accessory drive belt notched?

    Yes. The Gates TR22514 has molded notches that cut bending stress, especially on small diameter pulleys, and help the belt shed heat.

    What is the Green Stripe belt body made of?

    This V-belt has an EPDM body with a high modulus, high strength polyester tensile cord, and it meets RMA oil and heat resistant standards.

    How can I tell a fan and alternator V-belt like this one is worn?

    Fraying edges, chunks missing from the notches, or a belt that sits low in the pulley groove can mean this V-belt is worn.
