V-Belt for 1985-1999 Kenworth K100E & More - Gates TR24457

$38.99

Vehicles this part fits

    Part number: TR24457
    UPC: 072053275438
    Condition: New
    Weight: 0.53 LBS
    Item Package Quantity: 1
    $38.99
    Adding to cart… The item has been added

    Have questions?

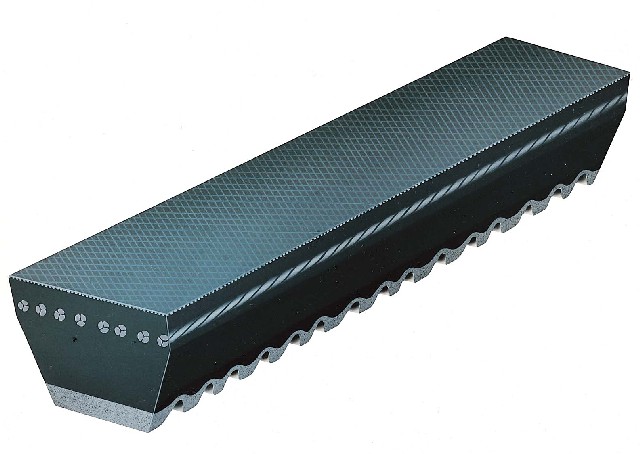

    Gates Accessory Drive Belt P/N:TR24457
    Gates Accessory Drive Belt P/N:TR24457
    $38.99
    $38.99

    Gates TR24457 v-belt for the 1985-1999 Kenworth K100E 6-cylinder 14.0L and other vehicles and equipment wedges into the pulley grooves to drive the engine fan.

    • Gates Green Stripe Truck & Bus Series V-belt made for heavy-duty truck, bus and off-road equipment applications
    • V-belt absorbs normal shock loads without being damaged
    • Molded notches reduce bending stress, especially on small diameter pulleys, and dissipate heat
    • High modulus, high strength polyester tensile cord
    • Construction is oil- and heat-resistant throughout and meets RMA oil and heat resistant standards and static conductivity requirements
    • Gates V-belt meets SAE J636b and SAE J637 specifications

    Quick facts

    • Part: Gates TR24457 v-belt
    • Fits: 1985-1999 Kenworth K100E 6-cylinder 14.0L and other vehicles and equipment
    • Position: Fan
    • Material: EPDM belt, polyester cord
    • Condition: New

    A V-belt that squeals, slips or shows cracking can be worn, though a worn pulley or a tensioner that is out of adjustment can also be behind those signs, so find the cause before you replace the belt.

    Fits

    The 1985-1999 Kenworth K100E 6-cylinder 14.0L, the 1969-1980 Kenworth K100, the 1981-1985 K100 6-cylinder 14.0L, the 1986-1993 K100 and the 1992 Kenworth C500 6-cylinder 14.0L are among the trucks this V-belt fits in the fan position, along with a wide range of other vehicles and equipment. If your truck or machine is not named here, look it up by year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Fan
    • Cross section: TA, 36° angle
    • Top width: 21/32 in (0.656 in, 17 mm)
    • Effective length: 45.64 in (1159 mm)
    • Outside circumference: 46 1/4 in (46.22 in, 1174 mm)
    • Strand quantity: 1
    • Quantity per vehicle: 1 or 2, depending on the vehicle or equipment

    Build and materials

    • Type: Truck & Bus V-belt
    • Construction: Notched
    • Material: EPDM belt, polyester tensile cord
    • Condition: New
    • Country of origin: United States

    In the box

    One single-strand V-belt. The 1985-1999 Kenworth K100E 6-cylinder 14.0L takes two, and other vehicles and equipment take one or two.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does this Gates V-belt fit the 1985-1999 Kenworth K100E 6-cylinder 14.0L?

    Yes. Gates TR24457 fits the 1985-1999 Kenworth K100E 6-cylinder 14.0L in the fan position, and that truck takes two of these V-belts.

    Will Gates TR24457 fit the 1969-1980 Kenworth K100?

    Yes, the Gates TR24457 fits the 1969-1980 Kenworth K100, the 1981-1985 K100 6-cylinder 14.0L and the 1986-1993 K100; look up your own truck or machine in the "Vehicles it fits" section.

    What cross section and length is this TA V-belt?

    This V-belt has a TA cross section with a 36° angle, a 21/32 in (17 mm) top width, a 45.64 in (1159 mm) effective length and a 46 1/4 in (1174 mm) outside circumference.

    How can I tell if a Gates accessory drive belt is worn?

    With the engine off and cool, look for cracks across the molded notches, glazed sides or frayed edges; any of these can mean this V-belt is worn.

    Is this Green Stripe V-belt oil and heat resistant?

    Yes. This V-belt is oil- and heat-resistant throughout, is made of EPDM with a polyester tensile cord, and meets RMA oil and heat resistant standards.
