Front Coolant Bypass Hose for 1988-1990 Ford Taurus & More - Gates 21840

$16.99

Vehicles this part fits

    Part number: 21840
    UPC: 072053061420
    Condition: New
    Weight: 0.37 LBS
    Item Package Quantity: 1
    $16.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Coolant Bypass Hose P/N:21840
    Gates Engine Coolant Bypass Hose P/N:21840
    $16.99
    $16.99

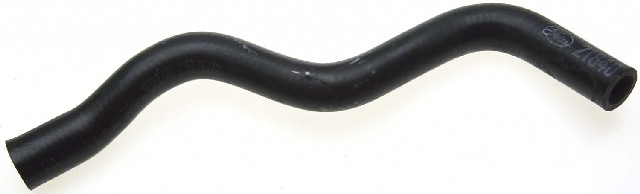

    Gates 21840 front coolant bypass hose for the 1988-1990 Ford Taurus V6 3.8L and other vehicles carries engine coolant between the intake manifold and the water pump. Also called an engine coolant bypass hose, it is a molded, pre-shaped hose.

    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Specifically engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • Pre-shaped molded form to fit and to ensure sealed connections
    • Temperature range of -40 °F to +257 °F (-40 °C to +125 °C)
    • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)

    Quick facts

    • Part: Gates 21840 coolant bypass hose
    • Also called: engine coolant bypass hose
    • Fits: 1988-1990 Ford Taurus V6 3.8L and other vehicles
    • Position: Front, intake manifold to water pump
    • Material: EPDM
    • Condition: New

    Cracks, a swollen or soft hose, or coolant seeping at the ends can mean the hose is worn. A loose clamp, a leaking water pump or a worn thermostat can produce coolant loss or overheating as well, so find the cause before buying a hose.

    Fits

    It fits the 1988-1990 Ford Taurus V6 3.8L, the 1988-1990 Lincoln Continental V6 3.8L and the 1988-1990 Mercury Sable V6 3.8L.

    Specifications

    Fit and size

    • Position: front, intake manifold to water pump
    • Quantity per vehicle: 1
    • Centerline length: 13.4 in (340 mm)
    • End 1 inside diameter: 0.61 in (15 mm)
    • End 2 inside diameter: 0.75 in (19 mm)

    Build and materials

    • Material: EPDM
    • Construction: molded
    • Contains spring: No
    • Condition: New
    • Country of origin: United States

    In the box

    One coolant bypass hose. The cars it fits call for a single hose in this position.

    Installation notes

    • Replace the hose clamps each time a new hose is installed.
    • For coolant only; not for fuel or oil transfer.

    Interchange: 14-2612-0 · KM-1715 · KM-1891
    E7DE 8597 CA · E7DE 8597 CH · E7DE 8597 GA · E8DE 8597 A · E8DE 8597 AA · E8DZ 8597 A · F0DZ 8597 A · 4635249 · 16196M · 642224 · 71414 · B71414 · 43036 · 3031 · 63036 · 8530 · BP1840

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4635249, 16196M, 642224, 14-2612-0, 21840, 71414, B71414, 43036, E7DE 8597 CA, E7DE 8597 CH, E7DE 8597 GA, E8DE 8597 A, E8DE 8597 AA, E8DZ 8597 A, F0DZ 8597 A, 3031, 63036, KM-1715, KM-1891, 8530, BP1840

    Frequently Asked Questions

    Does the Gates 21840 coolant bypass hose fit a 1988-1990 Mercury Sable V6 3.8L?

    Yes. Gates 21840 fits the 1988-1990 Mercury Sable V6 3.8L. It is the front hose running from the intake manifold to the water pump, and one hose is needed per car.

    What are the end sizes and length of this coolant bypass hose?

    One end has a 15 mm (0.61 in) inside diameter and the other a 19 mm (0.75 in) inside diameter. The centerline length is 340 mm (13.4 in).

    What temperature range does this coolant bypass hose cover?

    The temperature range is -40 °F to +257 °F (-40 °C to +125 °C). The hose is for coolant and is not meant for fuel or oil transfer.

    Should I use new clamps when installing Gates 21840?

    Yes. New hose clamps are recommended each time a coolant hose is installed, so plan on fresh clamps for this hose.

    How can I tell this bypass hose is wearing out?

    Cracks, a swollen or soft feel, and coolant seeping at the ends can mean the hose is worn. Look only with the engine off and cool.
