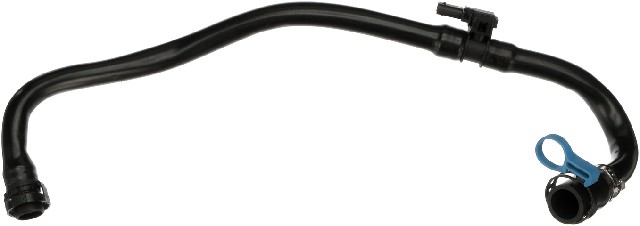

Gates EMH338 crankcase breather hose for the 2017-2020 Ford Fusion 4-cylinder 1.5L carries crankcase vapors from the valve cover to the intake tube. It is part of the emission control and ventilation system.
- Resistant to fuel vapors and oil
- Meets SAE J30R7 specifications
- Temperature range of -40 °F to +275 °F (-40 °C to +135 °C)
- Molded hose with a clip-on end and one quick connect fitting
Quick facts
- Part: Gates EMH338 crankcase breather hose
- Also called: crankcase vent hose
- Fits: 2017-2020 Ford Fusion 4-cylinder 1.5L
- Position: valve cover to intake tube
- Material: plastic, rubber
- Condition: New
A cracked, soft or oil-soaked hose can mean it is worn, so look it over with the engine off and cool. These signs alone do not prove the hose is the problem, since a clogged PCV valve can cause them too.
Fits
This hose is a direct replacement for the 2017-2020 Ford Fusion 4-cylinder 1.5L, which takes one.
Specifications
Fit and size
- Position: valve cover to intake tube
- Quantity per vehicle: 1
- Inside diameter: 18 mm (0.7 in) and 23 mm (0.9 in)
- Centerline length: 719 mm (28.31 in)
- End type: clip-on, with 1 quick connect fitting
Build and materials
- Material: plastic, rubber
- Construction: molded
- Grade: OE Exact
- Condition: New
- Country of origin: China
In the box
One crankcase breather hose. Hardware, a PCV valve and a protective sleeve are not included, so plan on new hardware rather than reusing the old.
Installation notes
- Direct-replacement design makes installation easy.
Interchange: HS7Z 6A664 A · HS7Z 6A664 B · HS7Z 6A664 C
PCV842 · KCV327 · V757
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PCV842, HS7Z 6A664 A, HS7Z 6A664 B, HS7Z 6A664 C, KCV327, EMH338, V757
Frequently Asked Questions
Is the Gates EMH338 crankcase breather hose right for a 2017-2020 Ford Fusion 4-cylinder 1.5L?
Yes. Gates EMH338 is listed for the 2017-2020 Ford Fusion 4-cylinder 1.5L, and the car takes one hose.
Does the Gates EMH338 come with clips or a PCV valve?
No. Gates EMH338 is one breather hose only. Hardware, a PCV valve and a protective sleeve are not included.
What are the inside diameters and length of this breather hose?
The inside diameters are 18 mm (0.7 in) and 23 mm (0.9 in). The centerline length is 719 mm (28.31 in).
How can I tell if the crankcase vent hose between the valve cover and intake tube is worn?
With the engine off and cool, look for cracks, soft or swollen spots, or oil seepage along the hose and at its clip-on end. A shop can test the ventilation system.
Does this Gates breather hose meet SAE J30R7?
Yes. It meets SAE J30R7 specifications and handles -40 °F to +275 °F (-40 °C to +135 °C). It is made of plastic and rubber.
