Timing Belt Component Kit for 2001-2003 Mazda Protege & More - Gates TCK228

$218.99

Vehicles this part fits

    Part number: TCK228
    UPC: 072053557916
    Condition: New
    Weight: 2.10 LBS
    Item Package Quantity: 1
    $218.99
    Adding to cart… The item has been added

    Have questions?

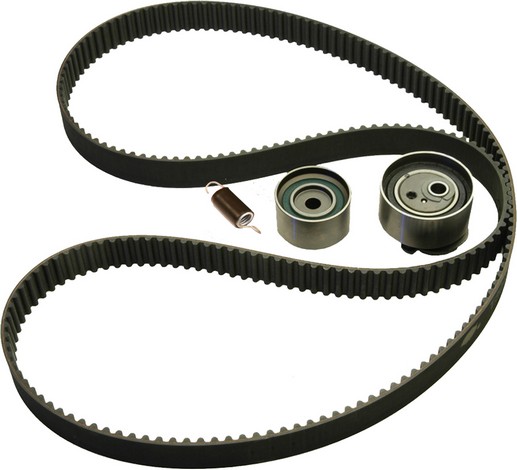

    Gates Engine Timing Belt Component Kit P/N:TCK228
    Gates Engine Timing Belt Component Kit P/N:TCK228
    $218.99
    $218.99

    Gates TCK228 timing belt component kit for the 2001-2003 Mazda Protege 4-cylinder 2.0L and other vehicles replaces the timing belt and the parts that tension and guide it. The belt keeps the crankshaft and camshaft turning in step, and this Gates timing belt kit puts those parts in one box.

    • PowerGrip Premium Timing Component Kit (TCK) line
    • Four parts in one kit: belt, tensioner, idler and spring, replaced together as a system
    • HSN belt with 135 Modified Curvilinear (III) teeth, 25 mm (1 in) wide
    • Spring-type tensioner supplied with its tensioner spring

    Quick facts

    • Part: Gates TCK228 timing belt component kit
    • Also called: engine timing belt component kit
    • Fits: 2001-2003 Mazda Protege 4-cylinder 2.0L and other vehicles
    • Material: HSN (belt)
    • Condition: New

    A belt with cracks, fraying or missing teeth, or a ticking or squealing noise from the timing area, can mean the kit is due. A weak water pump bearing, a leaking camshaft or crankshaft seal or a faulty crankshaft position sensor can be behind similar noises or running problems too, so find the cause before buying.

    Fits

    Among the many vehicles this kit fits are the 2001-2003 Mazda Protege 4-cylinder 2.0L, the 2002-2003 Mazda Protege5 4-cylinder 2.0L and the 1993-2002 Mazda 626 4-cylinder 2.0L, with one kit covering the engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Components in the kit: 4
    • Belt width: 25 mm (1 in)
    • Belt teeth: 135

    Build and materials

    • Belt material: HSN
    • Tooth type: Modified Curvilinear (III)
    • Tensioner type: Spring
    • Condition: New
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, for parts, labor and other associated costs
    • Country of origin: Mexico

    In the box

    One belt, one tensioner, one idler, one spring and an instruction sheet.

    Installation notes

    • Installation instructions come with the kit on instruction sheet 0098-1590.

    Interchange: 029-1151 · 2445-0228
    84083 · 94083 · BK228 · PP228LK1 · TB228LK1 · TB228K1 · 95228K1 · 95228K1S · GTK0228 · TTIK083 · 2522280 · VKMA94010S

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCK228, 029-1151, 84083, 94083, BK228, PP228LK1, TB228LK1, TB228K1, 95228K1, 95228K1S, 2445-0228, GTK0228, TTIK083, 2522280, VKMA94010S

    Frequently Asked Questions

    Does the Gates TCK228 fit the 2001-2003 Mazda Protege 4-cylinder 2.0L?

    Yes, Gates TCK228 fits the 2001-2003 Mazda Protege 4-cylinder 2.0L, and that engine takes one kit. For another vehicle, look up your year, model and engine in the "Vehicles it fits" section on this page.

    What is in this Gates engine timing belt component kit?

    Gates TCK228 holds one belt, one tensioner, one idler, one spring and an instruction sheet.

    What belt size and tooth type does this kit use?

    The belt is HSN with 135 Modified Curvilinear (III) teeth and measures 25 mm (1 in) wide.

    Can I keep driving if my timing belt looks worn?

    No, a worn or damaged timing belt should be inspected and replaced promptly, because a belt that fails stops the engine from running. A shop can inspect it.

    Does this Gates PowerGrip timing belt kit come with installation instructions?

    Yes. Gates TCK228 includes installation instructions on instruction sheet 0098-1590.
