Timing Belt Component Kit for 2000-2009 Subaru Outback & More - Gates TCK307

$274.99

Vehicles this part fits

    Part number: TCK307
    UPC: 770075427667
    Condition: New
    Weight: 6.30 LBS
    Item Package Quantity: 1
    $274.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Component Kit P/N:TCK307
    Gates Engine Timing Belt Component Kit P/N:TCK307
    $274.99
    $274.99

    Gates TCK307 timing belt component kit for the 2000-2009 Subaru Outback H4 2.5L and other vehicles replaces the belt, tensioner and idlers together. Catalogs also list this Gates timing belt component kit as an engine timing belt component kit.

    • Part of the PowerGrip Premium Timing Component Kit (TCK) line

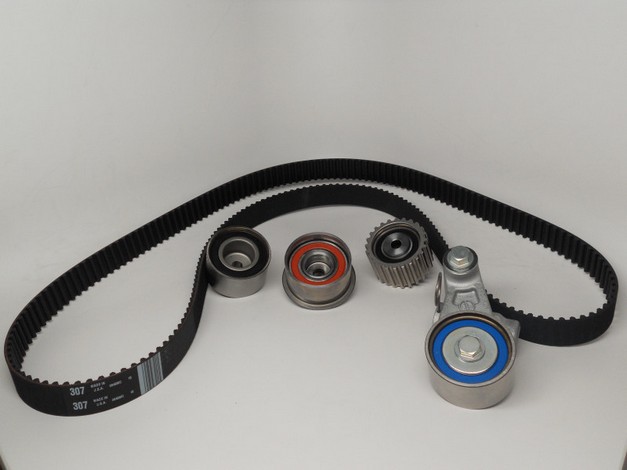

    • Five components in one kit: belt, hydraulic tensioner, two idlers and an idler sprocket
    • Belt with 223 teeth and the curvilinear (II) tooth type
    • Timing marks on the belt

    Quick facts

    • Part: Gates TCK307 timing belt component kit
    • Also called: engine timing belt component kit
    • Fits: 2000-2009 Subaru Outback H4 2.5L and other vehicles
    • Material: HSN belt
    • Condition: New

    Ticking or whining from the front of the engine, or a belt found frayed or cracked during service, can mean the belt, tensioner or idlers are worn. A leaking camshaft seal or a failing water pump can be behind the same signs, so find the cause before replacing the kit.

    Fits

    As a Gates timing belt kit for Subaru, it fits the 2000-2009 Subaru Outback H4 2.5L, the 2000-2009 Legacy H4 2.5L and the 2003-2006 Baja H4 2.5L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Number of components: 5
    • Idlers: 3 (two idlers and an idler sprocket)
    • Belt teeth: 223
    • Belt width: 27 mm (1.063 in)

    Build and materials

    • Belt material: HSN
    • Grade: OE Improved
    • Tensioner type: Hydraulic
    • Tooth type: Curvilinear (II)
    • Timing marks: Yes
    • Condition: New
    • Warranty: the Gates warranty follows the original manufacturer's timing belt replacement intervals and covers labor and other associated expenses as well as parts
    • Country of origin: Canada

    In the box

    One belt, one hydraulic tensioner, two idlers, one idler sprocket, an installation tool, Loctite threadlocker and an instruction sheet. This listing holds one kit, and the vehicle takes one. A water pump is not included.

    Installation notes

    • Instruction sheet 0098-1683 gives the installation steps.
    • Technical Service Bulletins for troublesome applications come with the kit.

    Interchange: F904307V-US · 2460-0307
    TB307K1 · 95307K1 · 95307K1S · GTK0307 · 2523070

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCK307, TB307K1, 95307K1, 95307K1S, F904307V-US, 2460-0307, GTK0307, 2523070

    Frequently Asked Questions

    Does the Gates timing belt kit TCK307 fit the 2003-2006 Subaru Baja H4 2.5L?

    Yes. Gates TCK307 fits the 2003-2006 Subaru Baja H4 2.5L, and that vehicle takes one kit.

    Is this the Gates timing belt and water pump kit?

    No. Gates TCK307 holds a belt, hydraulic tensioner, two idlers and an idler sprocket. A water pump is not included, since its quantity in the kit is 0.

    How wide is the belt, and how many teeth does it have, in this Gates kit?

    The belt is 27 mm (1.063 in) wide with 223 curvilinear (II) teeth, and it has timing marks.

    Does Gates TCK307 come with an installation tool?

    Yes. The kit includes an installation tool and Loctite threadlocker, plus instruction sheet 0098-1683.

    Does Gates TCK307 replace TB307K1?

    Yes. TB307K1 is among the numbers this kit replaces, along with 95307K1 and GTK0307.
