Timing Belt Kit with Water Pump for 1994-1995 Acura Integra - Gates TCKWP247A

$196.99

Vehicles this part fits

    Part number: TCKWP247A
    UPC: 770075535706
    Condition: New
    Weight: 3.69 LBS
    Item Package Quantity: 1
    $196.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP247A
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP247A
    $196.99
    $196.99

    Gates TCKWP247A timing belt kit with water pump for the 1994-1995 Acura Integra 4-cylinder 1.8L replaces the timing belt, tensioner and water pump in one job. This Gates timing belt and water pump kit, also sold as an engine timing belt kit with water pump, puts the parts that wear together in one box.

    • PowerGrip timing component kit with a water pump included
    • Timing belt made of HSN with fiberglass cord, 126 teeth, modified curvilinear (III) tooth type
    • Spring tensioner and tensioner spring supplied with the belt
    • Water pump designed and built for long-lasting, efficient cooling

    Quick facts

    • Part: Gates TCKWP247A timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 1994-1995 Acura Integra 4-cylinder 1.8L
    • Condition: New

    A cracked or frayed belt, a coolant leak at the water pump or a noisy tensioner can mean the kit is due. These signs alone do not prove this kit is the problem, since a loose hose clamp can also leak coolant. A water pump driven by the timing belt should be replaced at the same time as the belt.

    Fits

    This kit fits the 1994-1995 Acura Integra 4-cylinder 1.8L, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Belt width: 26 mm (1.024 in)
    • Belt teeth: 126
    • Tooth type: Modified Curvilinear (III)

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Tensioner type: Spring
    • Grade type: OE Exact
    • Condition: New
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, covering labor and other associated costs as well as parts
    • Country of origin: China

    In the box

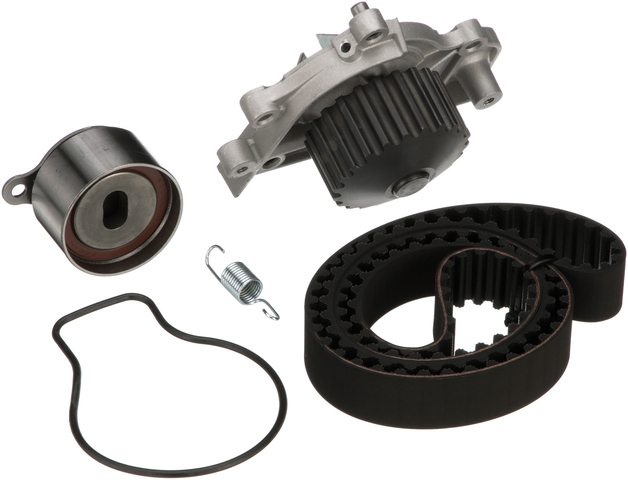

    One timing belt, one spring tensioner, one tensioner spring, one water pump and one rubber seal ring. Bolts, an idler pulley and an installation tool are not included, so plan on new bolts.

    Installation notes

    • Detailed installation instructions come in the kit (sheet 0098-0337).
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: WPK-0105
    AWK1363 · WP247K1AS · 24405K · BWPK41050 · WPK41050

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP247A, WPK-0105, AWK1363, WP247K1AS, 24405K, BWPK41050, WPK41050

    Frequently Asked Questions

    Does the Gates TCKWP247A timing belt kit fit the 1994-1995 Acura Integra 4-cylinder 1.8L?

    Yes. Gates TCKWP247A is listed for the 1994-1995 Acura Integra 4-cylinder 1.8L, and that engine takes one kit.

    Is the water pump included in this timing belt kit?

    Yes. The kit has the water pump, one belt, one spring tensioner, one tensioner spring and one rubber seal ring. Bolts, an idler pulley and an installation tool are not included.

    How wide is the belt in Gates TCKWP247A?

    The belt in Gates TCKWP247A is 26 mm (1.024 in) wide, with 126 teeth and a modified curvilinear (III) tooth type.

    What can a worn belt or water pump from a kit like this look like?

    A cracked or frayed belt, a coolant leak at the water pump or a noisy tensioner can point to wear. A shop can inspect the belt area, which sits behind covers.

    Does this Gates kit come with installation instructions?

    Yes. Detailed instructions come in the box under sheet number 0098-0337, along with Technical Service Bulletins for troublesome applications.
