Timing Belt Kit with Water Pump for 1998-2002 Volvo C70 & More - Gates TCKWP252

$389.99

Vehicles this part fits

    Part number: TCKWP252
    UPC: 770075535713
    Condition: New
    Weight: 6.30 LBS
    Item Package Quantity: 1
    $389.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP252
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP252
    $389.99
    $389.99

    Gates TCKWP252 timing belt kit with water pump for the 1998-2001 Volvo C70 5-cylinder 2.3L, the 1998-2002 C70 5-cylinder 2.4L and other vehicles replaces the belt, tensioners, idler and water pump in one job. Also called an engine timing belt kit with water pump, it pairs the pump with the belt because a timing-belt-driven water pump should be replaced together with the belt.

    • PowerGrip Premium timing component kit with water pump
    • Timing belt with 148 teeth, 23 mm wide, in the modified curvilinear (III) tooth type
    • HSN belt material with fiberglass cord
    • Hydraulic tensioner type, with an idler pulley in the same kit
    • Water pump designed and built for efficient cooling

    Quick facts

    • Part: Gates TCKWP252 timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 1998-2001 Volvo C70 5-cylinder 2.3L, the 1998-2002 C70 5-cylinder 2.4L and other vehicles
    • Material: HSN, fiberglass cord (belt)
    • Condition: New

    Coolant seepage at the pump, a whine or rumble from the pump bearing, or a belt with cracked or frayed teeth can mean the kit is due. A leaking coolant hose, a loose accessory belt or a sticking thermostat can sit behind coolant loss or noise too, so track down the cause before buying a kit.

    Fits

    The vehicles it fits include the 1998-2000 Volvo S70 5-cylinder 2.3L or 2.4L and the 1998-2000 Volvo V70 5-cylinder 2.3L or 2.4L, along with the C70 named above. A 1998-2000 Volvo V70 5-cylinder 2.3L or 2.4L takes one kit. If your Volvo is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Belt width: 23 mm (0.906 in)
    • Belt teeth: 148
    • Tooth type: Modified Curvilinear (III)

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Tensioner type: Hydraulic
    • Grade: OE Exact
    • Condition: New
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, for parts, labor and other associated costs
    • Country of origin: China

    In the box

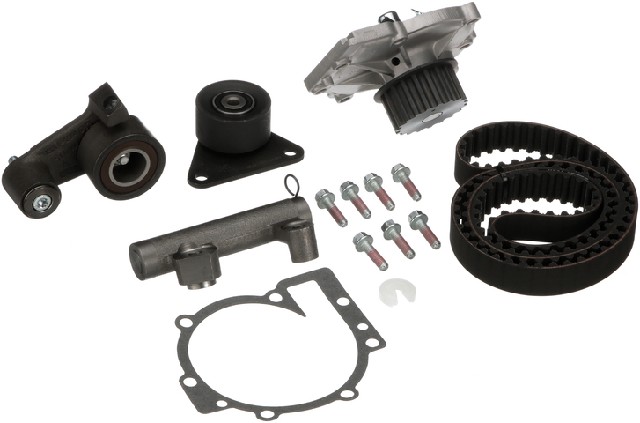

    One timing belt, two tensioners including a hydraulic tensioner, one idler, one water pump, seven bolts, one gasket and a plastic spacer. Tensioner springs and an installation tool are not included.

    Installation notes

    • Detailed installation instructions come with the kit, sheet 0098-1714.
    • The kit also carries Technical Service Bulletins for troublesome applications.

    Interchange: TKV-004
    PP252LK1 · PP252LK2 · PP252LK3 · TB252LK2 · WP252K1D · WP252K1DS · WP252K1E · GTKWP252 · 24406K · BWPK41110A · WPK41110A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP252, TKV-004, PP252LK1, PP252LK2, PP252LK3, TB252LK2, WP252K1D, WP252K1DS, WP252K1E, GTKWP252, 24406K, BWPK41110A, WPK41110A

    Frequently Asked Questions

    Does the Gates TCKWP252 fit a 1998-2000 Volvo S70 5-cylinder 2.3L or 2.4L?

    Yes, Gates TCKWP252 fits the 1998-2000 Volvo S70 5-cylinder 2.3L or 2.4L, and each takes one kit. For a different Volvo, look up its year and engine in the "Vehicles it fits" section.

    Does this Gates timing belt and water pump kit include a tensioner?

    Yes, Gates TCKWP252 includes two tensioners, among them a hydraulic tensioner, plus an idler, a water pump, seven bolts, a gasket and a plastic spacer. Tensioner springs are not included.

    How wide is the belt in this kit and how many teeth does it have?

    The timing belt in this kit is 23 mm (0.906 in) wide with 148 teeth, in the modified curvilinear (III) tooth type.

    Does this timing belt kit with water pump come with instructions?

    Yes, detailed installation instructions (sheet 0098-1714) and Technical Service Bulletins for troublesome applications come with the kit. An installation tool is not included.

    What does the Gates warranty on this kit cover?

    Gates warranty matches the original manufacturer's timing belt replacement intervals, covering parts as well as labor and other associated costs.
