Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP249B
Gates TCKWP277AN timing belt kit with water pump for the 1998 Subaru Forester H4 2.5L and other vehicles replaces the belt and water pump together. Because the water pump runs off the timing belt, it is replaced at the same time as the belt.
A coolant leak or whine from the water pump, a cracked or frayed belt, or noise from the tensioner or idlers can mean the kit is due. Before you replace the kit, rule out a leaking hose or radiator first, since coolant loss has more than one possible source.
It is a timing belt kit with water pump for the 1997-1999 Subaru Legacy H4 2.5L, and it also fits the 1998 Subaru Forester H4 2.5L and the 1998 Subaru Impreza H4 2.5L. The 1998 Subaru Impreza H4 2.5L takes one kit.
Fit and size
Build and materials

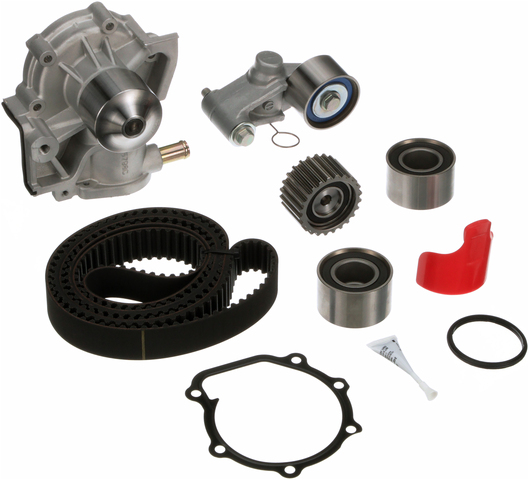

One timing belt, one hydraulic tensioner, three idlers, one water pump, an installation tool, Loctite, a metal gasket and an O-ring, with installation instructions. Bolts and springs are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 24535KN
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Gates TCKWP277AN fit the 1997-1999 Subaru Legacy H4 2.5L?
Yes. Gates TCKWP277AN is listed for the 1997-1999 Subaru Legacy H4 2.5L.
What does this Gates timing belt and water pump kit include besides the belt?
Gates TCKWP277AN adds a hydraulic tensioner, three idlers, the water pump, an installation tool, Loctite, a metal gasket and an O-ring. Bolts and springs are not included.
How wide is the belt in this engine timing belt kit with water pump?
The belt is 30 mm (1.181 in) wide with 281 teeth and a modified curvilinear (III) tooth type.
Which signs can show a worn water pump?
A coolant leak at the pump or a whine from the front of the engine can mean the pump is wearing. With the engine off and cool, look for coolant residue around the pump.
Does this Gates TCKWP277AN kit come with installation instructions?
Yes. The kit includes an installation tool and detailed installation instructions, plus Technical Service Bulletins for troublesome applications.
