Gates TCKWP286A timing belt kit with water pump for the 1998-2002 Honda Accord V6 3.0L and other vehicles replaces the timing belt and water pump together. It also includes tensioners and an idler, so the parts that guide and tension the belt are changed at the same time.
- PowerGrip Premium timing component kit with water pump
- One belt, two tensioners, one idler and one water pump in a single box
- Belt material is HSN with fiberglass cord
- Hydraulic tensioners included where needed
- Water pump designed and built for efficient cooling
Quick facts
- Part: Gates TCKWP286A timing belt kit with water pump
- Also called: engine timing belt kit with water pump
- Fits: 1998-2002 Honda Accord V6 3.0L and other vehicles
- Material: HSN, fiberglass cord (belt)
A belt-driven water pump should be replaced together with its timing belt, which is why the kit includes both. Coolant seepage at the pump, a grinding or whining noise from it, or an engine that runs hotter than normal can mean a worn pump or belt. Those signs have other possible causes, so first look with the engine off and cool for coolant residue around the pump.
Fits
The 1998-2002 Honda Accord V6 3.0L, the 1999 Honda Odyssey V6 3.5L and the 1997-1999 Acura CL V6 3.0L all fit this kit, along with more vehicles. Each engine takes one kit. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per application: 1 kit
- Belt width: 26 mm (1.054 in)
- Belt teeth: 197
Build and materials
- Belt material: HSN, fiberglass cord
- Tooth type: Modified Curvilinear (III)
- Tensioner type: Hydraulic
- Grade type: OE Exact
- Warranty: the Gates warranty matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
- Country of origin: China

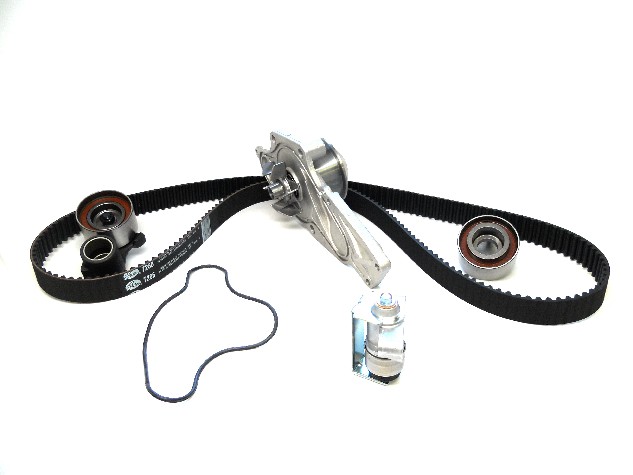

In the box
One timing belt, two tensioners, one idler, one water pump and one rubber seal ring, with an instruction sheet. Bolts, springs and an installation tool are not included; plan on new bolts, since the old ones may not be reusable.
Installation notes
- Detailed installation instructions come with the kit (instruction sheet 0098-1594).
- Technical Service Bulletins for troublesome applications are included.
Interchange: 3435-1286
TKH011 · CK286LK2 · PP286LK4 · TB286LK4 · TB286LK2 · WP286K1B · WP286K1BS · GTKWP286A · 24436K · BWPK42316A · WPK42316A · USTK286A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCKWP286A, TKH011, CK286LK2, PP286LK4, TB286LK4, TB286LK2, WP286K1B, WP286K1BS, 3435-1286, GTKWP286A, 24436K, BWPK42316A, WPK42316A, USTK286A
Frequently Asked Questions
Is this the right Honda Odyssey timing belt kit with water pump for a 1999 V6 3.5L?
Yes. Gates TCKWP286A fits the 1999 Honda Odyssey V6 3.5L. Use the "Vehicles it fits" section on this page to check other models and engines.
Does this Gates timing belt and water pump kit include bolts and tensioners?
Yes for the tensioners, no for the bolts. The kit has one belt, two tensioners, one idler, one water pump and a rubber seal ring; bolts, springs and an installation tool are not included.
How wide is the belt in this engine timing belt kit with water pump, and how many teeth does it have?
The belt is 26 mm (1.054 in) wide and has 197 teeth with a Modified Curvilinear (III) tooth type. The belt material is HSN with fiberglass cord.
What are the signs that the water pump in a timing belt kit is wearing out?
Coolant seepage around the pump, a grinding or whining noise from it, or an engine running hotter than normal can mean the pump is wearing. A shop can pressure-test the cooling system to find the cause.
Do the installation instructions come with Gates TCKWP286A?
Yes. Gates TCKWP286A includes detailed installation instructions (sheet 0098-1594) and Technical Service Bulletins for troublesome applications. An installation tool is not included.
