Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP259ABH
Gates TCKWP304CN timing belt kit with water pump for the 2002-2005 Subaru Forester H4 2.5L replaces the belt, tensioner, idlers and water pump together. This Gates timing belt and water pump kit, also called an engine timing belt kit with water pump, includes the pump because a belt-driven pump should be replaced with the belt.
Coolant seepage around the pump, a whine or rumble from the belt area, or an engine that runs hot can mean the belt or pump is wearing out. These signs alone do not prove this kit is at fault; a worn accessory drive belt can make similar noise.
This kit fits the 2002-2005 Subaru Forester H4 2.5L, which takes one kit.
Fit and size
Build and materials

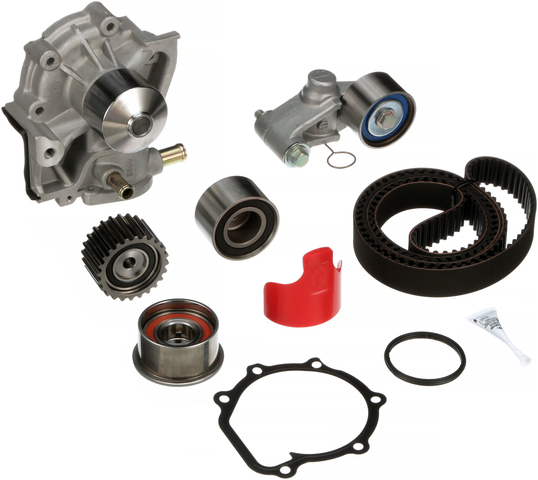

One belt, one hydraulic tensioner, three idlers, one water pump, one installation tool, Loctite, one metal gasket and one O-ring. Bolts and springs are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 24542KN
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Gates TCKWP304CN kit fit the 2002-2005 Subaru Forester H4 2.5L?
Yes. Gates TCKWP304CN fits the 2002-2005 Subaru Forester H4 2.5L, which takes one kit.
Does the Gates TCKWP304CN come with the tensioner, idlers and water pump?
Yes. It includes a hydraulic tensioner, three idlers, a water pump, the belt, Loctite, a metal gasket and an O-ring. Bolts are not included.
How wide is the belt in this Gates timing belt kit?
The belt is 27 mm (1.063 in) wide and has 223 teeth with a Modified Curvilinear (III) tooth type.
How can I tell if the water pump in this timing belt kit is wearing out?
With the engine off and cool, look for coolant seepage around the pump. A whine or rumble from the belt area while driving can also mean wear, and a shop can test the pump.
Does Gates TCKWP304CN come with instructions and an installation tool?
Yes. Detailed instructions (sheet 0098-1654) and an installation tool come in the box, along with Technical Service Bulletins for troublesome applications.
