Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328CRB
Gates TCKWP328C timing belt kit with water pump for the 2008-2013 Subaru Forester H4 2.5L and other vehicles replaces the belt, tensioner, idlers and water pump together. A water pump driven by the timing belt should be replaced at the same time as the belt.
Cracks or fraying on the belt, coolant seepage at the pump, or a whine or rattle from the idlers can mean the kit is due. Those signs alone do not prove the kit is the cause; a loose accessory belt is another common source of whine.
It also fits the 2008-2014 Subaru Impreza H4 2.5L and the 2012-2014 Subaru WRX H4 2.5L. The 2008-2013 Subaru Forester H4 2.5L takes one kit, and so do the other cars named here.
Fit and size
Build and materials

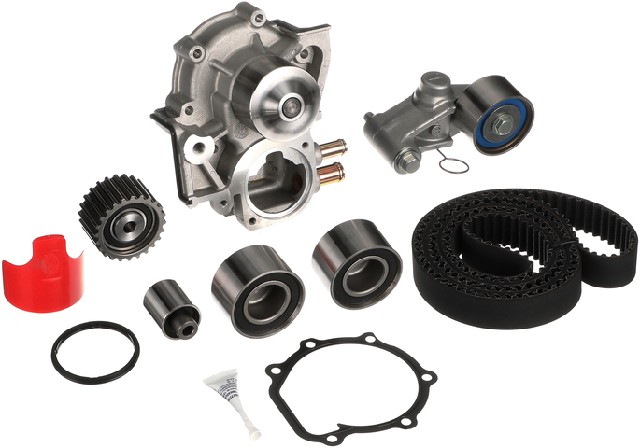

One timing belt, one hydraulic tensioner, four idlers, one water pump, an installation tool, a metal gasket and Loctite. Bolts and springs are not included, so plan on new bolts rather than reusing the old ones.
Interchange: TKF-005 · 3460-3328
GTKWP328C · PP328LK7 · TB328LK6 · WP328K1B · WP328K1BS · 24524K · BWPK42030 · WPK42030
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this Gates timing belt and water pump kit right for the 2012-2014 Subaru WRX H4 2.5L?
Yes. Gates TCKWP328C fits the 2012-2014 Subaru WRX H4 2.5L, and that engine takes one kit.
Does this engine timing belt kit with water pump include bolts?
No. Gates TCKWP328C leaves out bolts and springs, and it includes the belt, hydraulic tensioner, four idlers, water pump, installation tool, metal gasket and Loctite.
How wide is the belt in the TCKWP328C kit?
The HSN belt with fiberglass cord is 29 mm (1.142 in) wide and has 281 teeth of the modified curvilinear (III) type.
Do instructions come with the Gates TCKWP328C kit?
Yes. Detailed installation instructions, sheet 0098-1668, are in the box along with Technical Service Bulletins for troublesome applications.
What does the Gates warranty cover on this timing belt kit?
The Gates warranty matches the original manufacturer's timing belt replacement intervals. It covers labor and other associated costs as well as the parts.
