Timing Belt Kit with Water Pump for 2008-2012 Subaru Impreza & More - Gates TCKWP328SF

$478.99

Vehicles this part fits

    Part number: TCKWP328SF
    UPC: 770075533313
    Condition: New
    Weight: 15.40 LBS
    Item Package Quantity: 1
    $478.99
    Adding to cart… The item has been added

    Have questions?

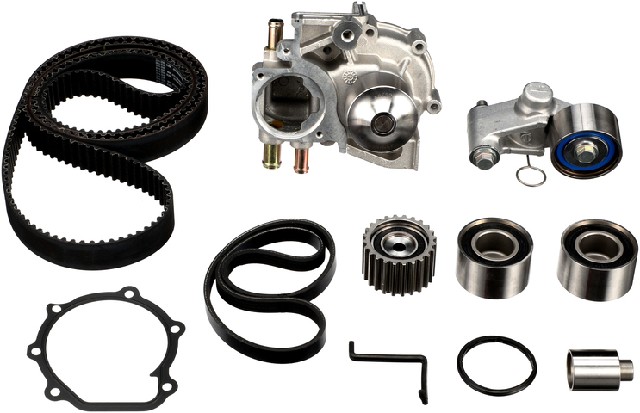

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328SF
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP328SF
    $478.99
    $478.99

    Gates TCKWP328SF timing belt kit with water pump for the 2008-2012 Subaru Impreza H4 2.5L and other vehicles replaces the timing belt and water pump together. This engine timing belt kit with water pump also includes the hydraulic tensioner and idlers, so the critical parts of the timing drive are replaced at the same time.

    • PowerGrip timing component kit with water pump
    • Water pump included, because a timing-belt-driven pump should be replaced along with the belt
    • Hydraulic tensioner and four idlers supplied with the belt
    • Timing belt with 281 teeth, 29 mm wide, in a Modified Curvilinear (III) tooth profile
    • Water pump designed and built for efficient cooling

    Quick facts

    • Part: Gates TCKWP328SF timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2008-2012 Subaru Impreza H4 2.5L and other vehicles
    • Material: HSN with fiberglass cord; EPDM with nylon cord (belts)
    • Condition: New

    A cracked or frayed timing belt, a coolant leak at the water pump or a new noise from the front of the engine can be reasons to replace this kit. These signs alone do not prove the kit is the problem; a worn accessory drive belt can make a similar noise.

    Fits

    This kit fits the 2008-2012 Subaru Impreza H4 2.5L and the 2012 Subaru WRX H4 2.5L. Either car needs one kit.

    Specifications

    Fit and size

    • Quantity per application: 1
    • Water pump: 1
    • Belts: 2 (timing belt and stretch fit belt)
    • Timing belt width: 29 mm (1.142 in)
    • Timing belt teeth: 281
    • Idlers: 4
    • Tensioner: 1, hydraulic

    Build and materials

    • Belt materials: HSN with fiberglass cord; EPDM with nylon cord
    • Tooth type: Modified Curvilinear (III)
    • Timing marks: Yes
    • Grade type: OE Performance
    • Condition: New
    • Warranty: the Gates warranty matches the original manufacturer's timing belt replacement intervals and covers parts, labor and other associated costs
    • Country of origin: Japan

    In the box

    One belt and one stretch fit belt, a hydraulic tensioner, four idlers, a water pump, an installation tool, Loctite, two gaskets and an O-ring. Bolts and springs are not included; plan on new bolts, since the old ones may not be reusable.

    Installation notes

    • Detailed installation instructions come with the kit as instruction sheet 0098-1668.
    • Technical Service Bulletins for troublesome applications are included.

    Interchange: WPE328K1A · WPE328K1AS · 24463KSF · BWPK43548SF · WPK43548SF

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP328SF, WPE328K1A, WPE328K1AS, 24463KSF, BWPK43548SF, WPK43548SF

    Frequently Asked Questions

    Does the Gates TCKWP328SF fit the 2012 Subaru WRX H4 2.5L?

    Yes. Gates TCKWP328SF fits the 2012 Subaru WRX H4 2.5L and the 2008-2012 Subaru Impreza H4 2.5L. One kit is needed per car.

    What does the Gates timing belt and water pump kit include besides the belt?

    Gates TCKWP328SF has a belt and a stretch fit belt, a hydraulic tensioner, four idlers, a water pump, an installation tool, Loctite, two gaskets and an O-ring. Bolts and springs are not included.

    How wide is the timing belt in this kit, and how many teeth does it have?

    The timing belt is 29 mm (1.142 in) wide with 281 teeth, in a Modified Curvilinear (III) tooth profile.

    What are signs the water pump in a timing belt kit is failing?

    A coolant leak or stain near the pump, a whine or grinding from the front of the engine, or overheating can mean the pump is failing. Look for leaks only with the engine off and cool; a shop can pressure-test the cooling system.

    Does this timing belt kit come with installation instructions?

    Yes. Instruction sheet 0098-1668 comes with the kit, along with Technical Service Bulletins for troublesome applications. An installation tool is also included.
