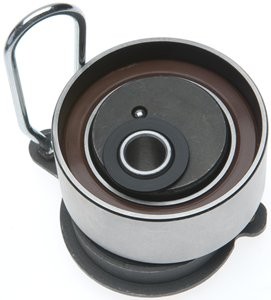

Gates Engine Timing Belt Tensioner Hydraulic Assembly,Engine Timing Belt Tensioner P/N:T43169
Gates T43175 timing belt tensioner for the 2001-2005 Honda Civic 4-cylinder 1.7L and other vehicles holds the timing belt at the right tension. This engine timing belt tensioner presses a spring-loaded pulley against the belt.
Ticking or rattling from the timing belt area, or a belt found slack or unevenly worn at inspection, can mean the tensioner is worn, though a stretched belt or a failing water pump can also be behind those signs.
As a timing belt tensioner for the 2001-2005 Honda Civic 4-cylinder 1.7L and the 2001-2005 Acura EL 4-cylinder 1.7L, it is built for OE-quality or OE-exact fit and performance, and each car takes one. Its bearings meet or exceed OE standards.
Fit and size
Build and materials
One tensioner, one bolt and one spring with damper.
Interchange: 9-5451 · 435-6733
84120 · 85555 · FS62596 · 04145PLC315 · 14520PLC305 · 14520PLC315 · 14520PLC325 · 14520PLC335
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Gates timing belt tensioner T43175 fit a 2001-2005 Honda Civic 4-cylinder 1.7L?
Yes. Gates T43175 fits the 2001-2005 Honda Civic 4-cylinder 1.7L and the 2001-2005 Acura EL 4-cylinder 1.7L, one tensioner per car.
Does the T43175 timing belt tensioner come with its bolt and spring?
Yes. Gates T43175 includes the tensioner, a bolt and a spring with damper.
How big is the pulley on this spring-type tensioner?
The pulley is 55 mm in outside diameter and 24 mm wide, with a smooth backside contact surface. The inside diameter is 10 mm.
What can a worn spring tensioner look or sound like?
It can rattle or tick near the timing belt area, and the belt can wear unevenly or run slack. A shop can inspect the tensioner and belt to confirm.
Does this PowerGrip tensioner need a separate tensioning step during installation?
No. This PowerGrip tensioner is designed to eliminate the need for a separate belt-tensioning operation during installation.
