VVT Sprocket for 2009-2019 Toyota Corolla & More - Gates VCP809

$330.99

Vehicles this part fits

    Part number: VCP809
    UPC: 770075794288
    Condition: New
    Weight: 2.60 LBS
    Item Package Quantity: 1
    $330.99
    Adding to cart… The item has been added

    Have questions?

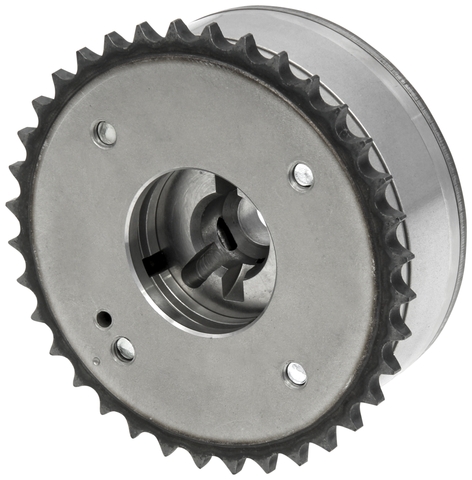

    Gates Engine Variable Valve Timing (VVT) Sprocket P/N:VCP809
    Gates Engine Variable Valve Timing (VVT) Sprocket P/N:VCP809
    $330.99
    $330.99

    Gates VCP809 VVT sprocket for the 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles rotates the sprocket position to advance or retard valve timing. Often called a cam phaser or cam actuator, it is also listed as an engine variable valve timing vvt sprocket.

    • 36-tooth profile designed for quiet operation with a single-row timing chain
    • Steel construction for durability and service life
    • Tested to help restore engine performance, fuel economy and power
    • Intake-side VVT sprocket with one mounting hole

    Quick facts

    • Part: Gates VCP809 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles
    • Position: Intake
    • Material: Steel
    • Condition: New

    A worn sprocket can show up as a rattle near the timing chain, a check engine light or rough running. Before you replace this sprocket, rule out a faulty position sensor or a fault elsewhere in the variable valve timing system. Each engine takes one, on the intake side.

    Fits

    The vehicles it fits include the 2009-2019 Toyota Corolla 4-cylinder 1.8L, the 2012 Toyota Prius 4-cylinder 1.8L and the 2013-2014 Scion xD 4-cylinder 1.8L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: intake
    • Quantity per vehicle: 1
    • Outside diameter: 3.667 in
    • Height: 1.492 in
    • Tooth quantity: 36
    • Tooth thickness: 0.163 in
    • Mounting hole quantity: 1

    Build and materials

    • Material: steel
    • Drive type: timing chain, 1 chain row
    • Grade type: OE Exact
    • Condition: new
    • Country of origin: China

    In the box

    One VVT sprocket. Mounting hardware is not included, so plan on new bolts.

    Interchange: 7V-4001P · 917-256
    VV5030 · CSP1016 · VVT530 · 130500T010 · 130500T011 · 130500T021 · 130500T050 · 1305037060

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5030, 7V-4001P, 917-256, VCP809, CSP1016, VVT530, 130500T010, 130500T011, 130500T021, 130500T050, 1305037060

    Frequently Asked Questions

    Is the VCP809 VVT sprocket right for the 2013-2014 Scion xD 4-cylinder 1.8L?

    Yes. Gates VCP809 fits the 2013-2014 Scion xD 4-cylinder 1.8L, which takes one sprocket. For other cars, look up the year and engine in the "Vehicles it fits" section.

    Does the Gates VCP809 come with mounting bolts?

    No. Mounting hardware is not included with the Gates VCP809, which is one steel VVT sprocket, so plan on new bolts.

    How many teeth does this VVT sprocket have, and how big is it?

    This sprocket has 36 teeth with a 0.163 in tooth thickness. It measures 3.667 in across the outside and 1.492 in high, and runs on a single-row timing chain.

    Is a cam phaser the same part as this VVT sprocket?

    Yes. Cam phaser and cam actuator are common names for VVT sprockets like the Gates VCP809, which has a 36-tooth profile designed for quiet operation.

    Does the Gates VCP809 replace the number 130500T010?

    Yes. 130500T010 is one of the numbers this Gates VCP809 replaces, along with 130500T011, VVT530 and others on the Interchange line.
