Heater Hose for 2015-2016 Chevrolet Colorado & More - Gates 12290

$40.99

Vehicles this part fits

    Part number: 12290
    UPC: 770075769316
    Condition: New
    Weight: 0.52 LBS
    Item Package Quantity: 1
    $40.99
    Adding to cart… The item has been added

    Have questions?

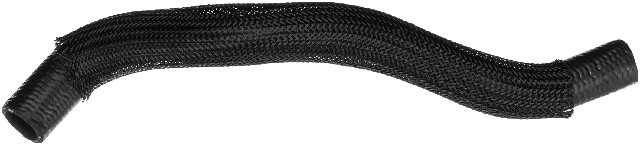

    Gates HVAC Heater Hose P/N:12290
    Gates HVAC Heater Hose P/N:12290
    $40.99
    $40.99

    Gates 12290 heater hose for the 2015-2016 Chevrolet Colorado and other vehicles carries coolant from the engine to the tee in the heater circuit. It is a factory-molded hose shaped for today's smaller, tighter engine compartments.

    • Part of the Gates Small I.D. Molded Coolant Hose line, with an OEM-style design
    • Has the quality features of Gates molded coolant hose and is similar to OEM specifications
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube and EPDM cover with synthetic fiber knit reinforcement
    • Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
    • Rated from -40 Deg. F to 275 Deg. F and approved for coolant, water, air and marine applications

    With age, a heater hose can crack or seep coolant at its ends, and a leaking one can leave the heater blowing cool air. A loose clamp, a leaking heater core or a worn water pump can be behind a coolant leak or a cool heater too, so track down the cause before you buy.

    It is a direct-fit replacement for the 2015-2016 Chevrolet Colorado and the 2015-2016 GMC Canyon.

    Specifications

    • Position: engine to tee
    • Construction: factory-molded, small I.D.
    • Tube: EPDM
    • Reinforcement: synthetic fiber knit
    • Cover: EPDM
    • Specification: SAE 20R3 Type EC Class D-1 and D-2
    • Temperature range: -40 Deg. F to 275 Deg. F (-40 Deg. C to 135 Deg. C)
    • Approved uses: coolant, water, air and marine applications

    Installation notes

    • Replace the hose clamps each time a new hose is installed.
    • Do not use this hose for fuel or oil transfer.

    Interchange: 16747M · F10561 · 23125836 · 13290

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    16747M, F10561, 23125836, 12290, 13290

    Frequently Asked Questions

    Will this Gates heater hose fit a 2015-2016 GMC Canyon?

    Yes. The Gates 12290 heater hose fits the 2015-2016 GMC Canyon and the 2015-2016 Chevrolet Colorado in the engine-to-tee position.

    Can the Gates HVAC heater hose 12290 be used for fuel or oil lines?

    No. The Gates 12290 is made for coolant, water and air applications and is approved for marine use, but it must not be used for fuel or oil transfer.

    What temperature range is this Gates molded heater hose rated for?

    This molded heater hose is rated from -40 Deg. F to 275 Deg. F (-40 Deg. C to 135 Deg. C) and meets SAE 20R3 Type EC Class D-1 and D-2 specifications.

    How can I tell if my engine-to-tee heater hose is going bad?

    Coolant seeping at the hose ends, visible cracks, or a swollen or soft spot you can see with the engine off and cool can mean this heater hose is wearing out.

    Do I need new clamps when installing the Gates 12290 heater hose?

    Yes. Plan on new hose clamps for this heater hose, since clamps should be replaced every time a new coolant hose goes in.
