Heater Hose for 1996-1999 Chevrolet Cavalier & More - Gates 22945

$187.99

Vehicles this part fits

    Part number: 22945
    UPC: 072053576542
    Condition: New
    Weight: 1.00 LBS
    Item Package Quantity: 1
    $187.99
    Adding to cart… The item has been added

    Have questions?

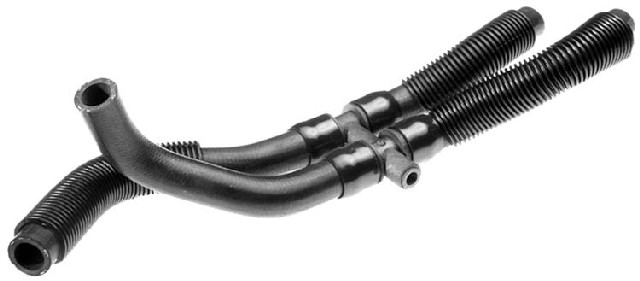

    Gates HVAC Heater Hose P/N:22945
    Gates HVAC Heater Hose P/N:22945
    $187.99
    $187.99

    Gates 22945 heater hose for the 1996-1999 Chevrolet Cavalier 4-cylinder 2.4L and other vehicles carries engine coolant between the heater and the engine. This Gates molded heater hose is a modular assembly made to fit specific applications.

    • Gates Modular Coolant Hose with four branches molded into one assembly
    • Specifically engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID
    • Temperature range of -40 °F to +257 °F (-40 °C to +125 °C)

    Quick facts

    • Part: Gates 22945 heater hose
    • Also called: HVAC heater hose
    • Fits: 1996-1999 Chevrolet Cavalier 4-cylinder 2.4L and other vehicles
    • Position: Heater to engine
    • Material: EPDM, plastic
    • Condition: New

    A coolant leak at a hose end, a soft or swollen hose, a cracked cover or heat that comes and goes at the vents can mean a heater hose, sold by some as an HVAC heater hose, needs replacing. Other cooling parts can produce similar symptoms, so track down the source before you buy a hose. With the engine off and cool, look along the hose and squeeze it for cracks, bulges, soft spots and wet stains at the ends; a shop can pressure-test the system. The car takes one hose, which runs from the heater to the engine.

    Fits

    This hose is a direct-fit replacement for the 1996-1999 Chevrolet Cavalier 4-cylinder 2.4L and the 1996-1998 Pontiac Sunfire 4-cylinder 2.4L.

    Specifications

    Fit and size

    • Position: heater to engine
    • Quantity per vehicle: 1
    • Inside diameter, all four ends: 0.75 in (19 mm)
    • Centerline length: 17.3 in (439 mm)
    • Branches: 4

    Build and materials

    • Construction: molded, modular
    • Material: EPDM, plastic
    • Contains spring: no
    • Quick-connect fittings: none
    • Condition: new
    • Country of origin: United States

    Installation notes

    • Replace the clamps each time a new coolant hose is installed.
    • Not for fuel or oil transfer applications.

    Interchange: 22514M · 64349 · D91045 · E88480 · 88480 · 22623040 · 22651573 · 22658943 · 9580

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    22514M, 22945, 64349, D91045, E88480, 88480, 22623040, 22651573, 22658943, 9580

    Frequently Asked Questions

    Is this Gates heater hose right for the 1996-1998 Pontiac Sunfire 4-cylinder 2.4L?

    Yes. Gates 22945 fits the 1996-1998 Pontiac Sunfire 4-cylinder 2.4L and runs from the heater to the engine.

    Is this Gates 3/4 inch heater hose the same size on every end?

    Yes. All four ends of Gates 22945 have a 0.75 in (19 mm) inside diameter, and the centerline length is 17.3 in (439 mm).

    What is the Gates 22945 hose made of, and what heat can it take?

    Gates 22945 has an EPDM tube, synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover. The temperature range is -40 °F to +257 °F.

    Can I use this heater hose for fuel or oil lines?

    No. This hose is a coolant hose and is not for fuel or oil transfer applications.

    Do I need new clamps when installing this heater hose?

    Yes. Fit new clamps each time a coolant hose is replaced. This hose has four branches and no quick-connect fittings.
