Heater Hose for 2002-2005 Dodge Ram 1500 & More - Gates 24207

$122.99

Part number: 24207

UPC: 770075636540

Condition: New

Weight: 8.42 LBS

Item Package Quantity: 1

$122.99

Current Stock: 124

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

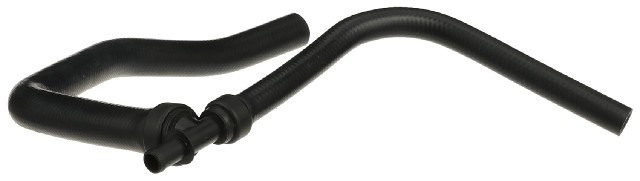

Gates HVAC Heater Hose P/N:24207

$122.99

Description

Gates 24207 heater hose for the 2002-2005 Dodge Ram 1500 V8 4.7L and other vehicles carries coolant from the tee to the reservoir. This Gates molded heater hose, also called an HVAC heater hose, comes with a branch and an outlet.

Modular design with a branch and an outlet built in
Materials engineered to resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
Temperature range of -40°F to +257°F (-40°C to +125°C)

Quick facts

Part: Gates 24207 heater hose
Also called: HVAC heater hose
Fits: 2002-2005 Dodge Ram 1500 V8 4.7L and other vehicles
Position: Tee to reservoir
Material: EPDM, plastic
Condition: New

A worn hose can show coolant seepage, cracks or a soft, collapsed section. A loose clamp, a leaking heater core or a failing water pump can be behind these signs too, so find the cause before buying a hose.

Fits

It is a direct-fit replacement for the 2002-2005 Dodge Ram 1500 V8 4.7L and the 2002-2005 Dodge Ram 2500 V8 4.7L. Each takes one hose on the run between the tee and the reservoir, and this listing is one hose.

Specifications

Fit and size

Position: tee to reservoir
Quantity per vehicle: 1
Centerline length: 21.5 in (546 mm)
End 1 inside diameter: 0.625 in (16 mm)
End 2 inside diameter: 0.625 in (16 mm)
End 3 inside diameter: 0.94 in
Branch quantity: 1

Build and materials

Construction: molded, modular
Material: EPDM, plastic
Quick-connect fittings: none
Standard: SAE 20R3 EC Class D1 (under 25 mm ID)
Condition: New
Country of origin: United States

In the box

One heater hose with its branch and outlet.

Installation notes

Replace the clamps each time a new coolant hose is installed.
Not for fuel or oil transfer applications.

Interchange: 22783L · 55056232AB · 55056232AC · 88514 · F10247 · 16897 · R42102

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

22783L, 55056232AB, 55056232AC, 88514, F10247, 16897, R42102

Buyer's Q&A

Frequently Asked Questions

Is the Gates 24207 a heater hose for the 2002-2005 Dodge Ram 1500 V8 4.7L?

Yes. Gates 24207 is a direct-fit heater hose for the 2002-2005 Dodge Ram 1500 V8 4.7L, and it runs between the tee and the reservoir.

Will the Gates 24207 fit as a heater hose on the 2002-2005 Dodge Ram 2500 V8 4.7L?

Yes. Gates 24207 is a direct-fit heater hose for the 2002-2005 Dodge Ram 2500 V8 4.7L, and the truck takes one.

What is this heater hose made of, and what temperatures can it handle?

The tube and cover are EPDM, with a synthetic fiber knit reinforcement. The temperature range is -40°F to +257°F (-40°C to +125°C).

What are the diameters and length of the Gates 24207?

Ends 1 and 2 are 0.625 in (16 mm) inside diameter and end 3 is 0.94 in. The centerline length is 21.5 in (546 mm), with one branch.

Do I need new clamps when I install this heater hose?

Yes. Clamps should be replaced each time a new coolant hose goes on. This hose is not for fuel or oil transfer applications.
