Heater Hose for 2017-2018 BMW 320i & More - Gates 51536

$149.99

Vehicles this part fits

    Part number: 51536
    UPC: 770075777298
    Condition: New
    Weight: 4.28 LBS
    Item Package Quantity: 1
    $149.99
    Adding to cart… The item has been added

    Have questions?

    Gates HVAC Heater Hose P/N:51536
    Gates HVAC Heater Hose P/N:51536
    $149.99
    $149.99

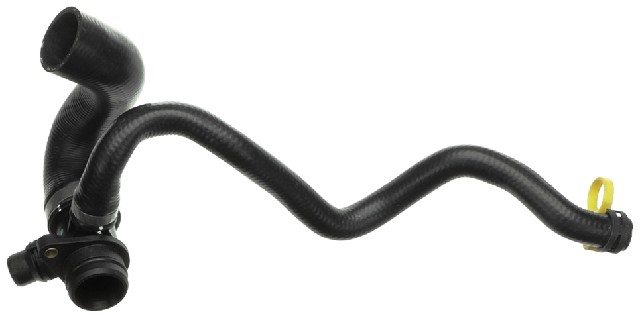

    Gates 51536 heater hose for the 2017-2018 BMW 320i 4-cylinder 2.0L and other vehicles connects the water pump to the block. It is a molded hose that carries engine coolant.

    • Modular Coolant Hose design with one branch, one male quick connector and an outlet flange
    • Specifically-engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm (1 in.) ID and over
    • Temperature range of -40 °F to +257 °F (-40 °C to +125 °C)

    Quick facts

    • Part: Gates 51536 heater hose
    • Also called: HVAC heater hose
    • Fits: 2017-2018 BMW 320i 4-cylinder 2.0L and other vehicles
    • Position: Water pump to block
    • Material: EPDM, plastic and steel
    • Condition: New

    Coolant stains near the water pump, a swollen or cracked hose or weak cabin heat can mean the hose is wearing out. Before you replace it, rule out a loose clamp or a leak at the water pump or block, since those leave similar marks.

    Fits

    The 2017-2018 BMW 320i xDrive 4-cylinder 2.0L and the 2018 BMW 120i 4-cylinder 2.0L are two more cars this hose fits as a direct-fit replacement. Each takes one hose, between the water pump and the block.

    Specifications

    Fit and size

    • Position: water pump to block
    • Quantity per vehicle: 1
    • Centerline length: 12 in (305 mm)
    • End 1 inside diameter: 1.13 in (29 mm)
    • End 2 inside diameter: 1.5 in (38 mm)
    • End 3 inside diameter: 0.65 in

    Build and materials

    • Construction: molded, modular
    • Material: EPDM, plastic and steel
    • Contains spring: No
    • Condition: New
    • Country of origin: Turkey

    In the box

    One heater hose with its branch, male quick connector and outlet flange.

    Installation notes

    • Replace the clamps each time a new coolant hose is installed.
    • Do not use for fuel or oil transfer applications.

    Interchange: 24851L · 11537639997 · F11226 · R19967 · CHE0636

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    24851L, 11537639997, F11226, 51536, R19967, CHE0636

    Frequently Asked Questions

    Does the Gates 51536 heater hose fit the 2018 BMW 120i 4-cylinder 2.0L?

    Yes. Gates 51536 is made for the 2018 BMW 120i 4-cylinder 2.0L, one hose per engine. Driving a different BMW? Find your year and engine in the "Vehicles it fits" section.

    What is built into this Gates molded heater hose?

    Gates 51536 comes with one branch, one male quick connector and an outlet flange already attached. Its centerline length is 12 in (305 mm).

    What temperature range does this Gates HVAC heater hose handle?

    Gates 51536 is rated from -40 °F to +257 °F (-40 °C to +125 °C). Its EPDM cover resists heat, ozone and chemical coolants.

    Should I put new clamps on when I install this heater hose?

    Yes. Replace the clamps each time a new hose goes on. This hose is for coolant only, not for fuel or oil transfer.

    How do I check this heater hose for wear?

    With the engine off and cool, look for cracks, swelling, soft spots or coolant stains near the hose ends. Weak heat or low coolant can have other causes, so a shop can test the system.
