Lower Radiator Coolant Hose for 1991-1995 Jeep Wrangler & More - Gates 20539

$31.99

Vehicles this part fits

    Part number: 20539
    UPC: 072053051629
    Condition: New
    Weight: 1.18 LBS
    Item Package Quantity: 1
    $31.99
    Adding to cart… The item has been added

    Have questions?

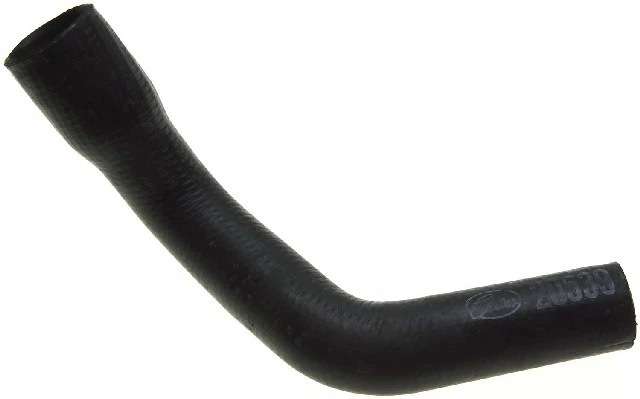

    Gates Radiator Coolant Hose P/N:20539
    Gates Radiator Coolant Hose P/N:20539
    $31.99
    $31.99

    Gates 20539 lower cooling system components for the 1991-1995 Jeep Wrangler 4.0L and other vehicles is a molded coolant hose that carries coolant and comes pre-shaped to fit.

    • Built to OEM-quality specifications for coolant applications.
    • Specifically engineered materials resist collapse under vacuum.
    • Engineered to resist electrochemical degradation, the leading cause of hose failure.
    • Pre-shaped to fit and to seal at the connections.
    • Synthetic fiber knit reinforcement under a heat-, ozone- and chemical coolant-resistant EPDM cover.
    • Temperature range: -40 °F to +257 °F (-40 °C to +125 °C).

    Coolant seepage at the ends, cracks or a swollen section can mean this hose is worn, though a leaking water pump or a faulty radiator cap can be behind coolant loss too, so find the cause before you replace anything.

    It fits a wide range of Jeep and American Motors models, including the 1965-1968 Jeep J-100 5.3L and the 1965-1968 Jeep J-2500 5.3L.

    Specifications

    Fit and size

    • Position: Lower
    • Quantity per vehicle: 1
    • Centerline length: 15.1 in (384 mm)
    • End 1 inside diameter: 1.5 in (38 mm)
    • End 2 inside diameter: 1.88 in (48 mm)

    Build and materials

    • Material: EPDM
    • Construction: molded
    • Contains spring: No
    • Standards: meets SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
    • Country of origin: United States

    Installation notes

    • Replace the hose clamps each time a new coolant hose is installed.
    • Do not use for fuel or oil transfer applications.

    Interchange: BH-1508 · BH-990 · KM-3098 · KM-4474 · KM-494
    22031M · 3163640 · 3163933 · 3166633 · 3171659 · 3175104 · 3179117 · 939913 · 939915 · RH55 · 52005918 · 484 · 70456 · 70484 · F10967 · MR864 · 60723 · 7312

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    22031M, 3163640, 3163933, 3166633, 3171659, 3175104, 3179117, 939913, 939915, RH55, 20539, 52005918, 484, 70456, 70484, F10967, MR864, 60723, BH-1508, BH-990, KM-3098, KM-4474, KM-494, 7312

    Frequently Asked Questions

    Does the Gates 20539 fit a 1991-1995 Jeep Wrangler 4.0L?

    Yes, Gates 20539 is listed for the 1991-1995 Jeep Wrangler 4.0L and the 1965-1968 Jeep J-100 5.3L. If your car is not named here, look it up in the "Vehicles it fits" section.

    What are the inside diameters of the Gates 20539 lower radiator hose?

    Gates 20539 has an End 1 inside diameter of 1.5 in (38 mm) and an End 2 inside diameter of 1.88 in (48 mm). Its centerline length is 15.1 in (384 mm).

    What temperature range does this molded coolant hose handle?

    Its temperature range is -40 °F to +257 °F (-40 °C to +125 °C). The tube is EPDM, under a heat-, ozone- and chemical coolant-resistant EPDM cover.

    Should I replace the hose clamps when installing the Gates 20539?

    Yes, replace the hose clamps whenever you install a new coolant hose, including the Gates 20539. This listing is one hose.

    Can I use this Gates coolant hose for fuel or oil lines?

    No. It is a coolant hose and must not be used for fuel or oil transfer applications.
